Select Series™ NMR Sample Tubes for Ceramic Turbines • 3 mm • 7 Inch • 600 MHZ • 5 Pack

SKU CTS-3-600-7
$138.77

Available to Order

Back

Details

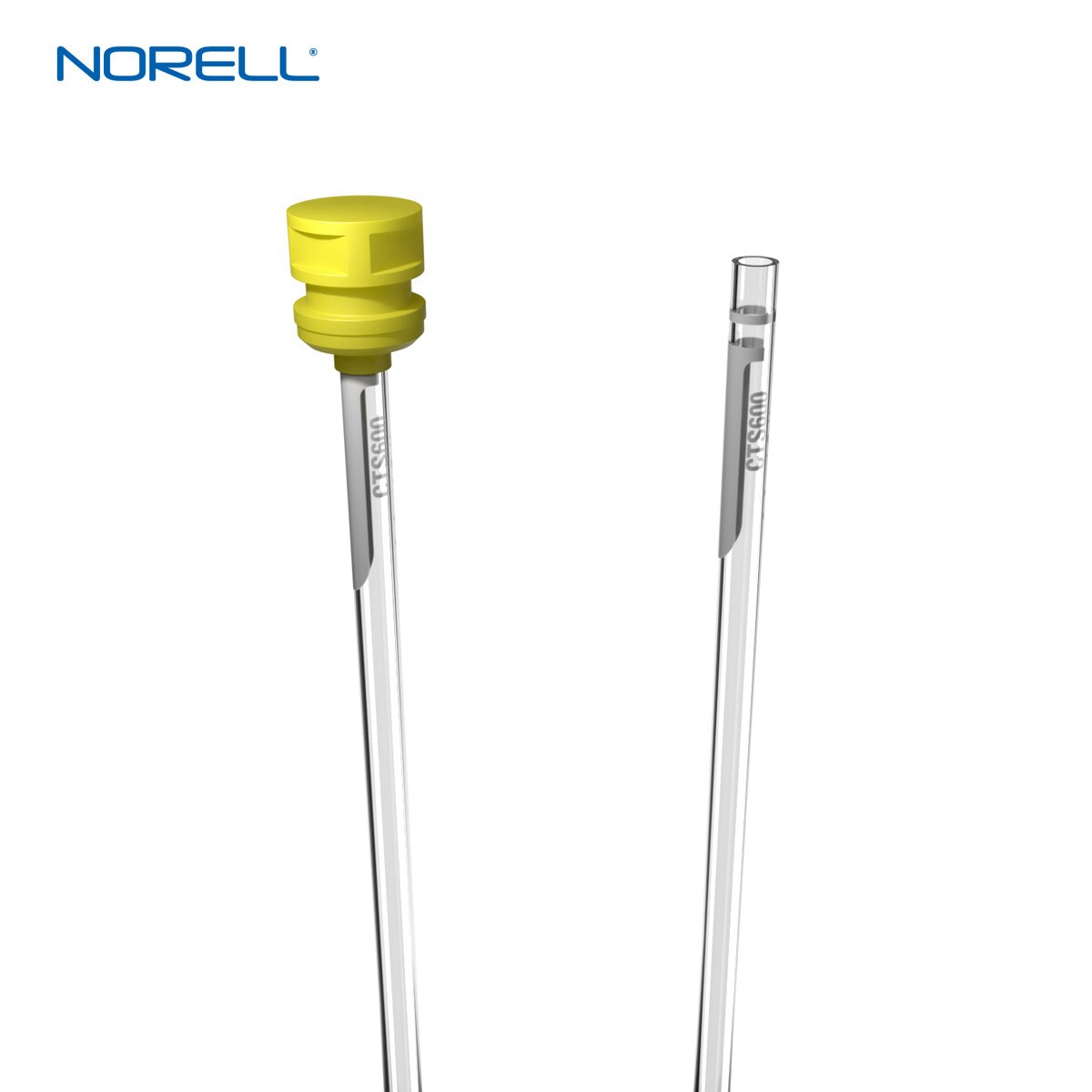

Select Series™ 3 mm NMR Sample Tubes for Ceramic Turbines, 5 Pack

  • 3 mm
  • 600 MHz

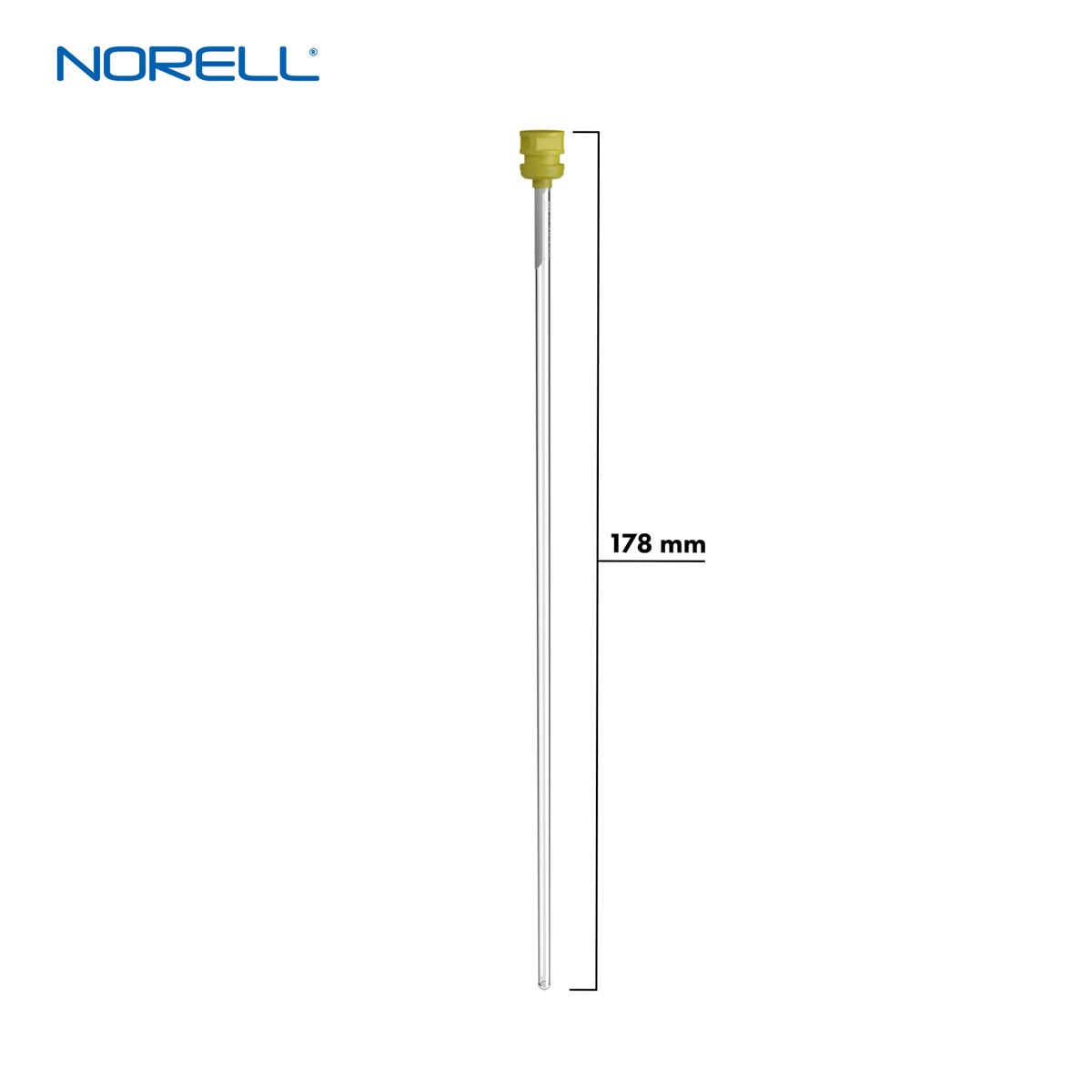

  • 7 Inch (178 mm)
  • Caps Included
  • O.D.: 2.95 ± 0.012 mm / I.D.: 2.37 ± 0.012 mm
  • Concentricity (mm): 0.0040
  • Camber ± (mm): 0.0060

    Our “Select Series™” NMR tubes are manufactured out of ASTM Type 1 Class A glass, commonly referred to as Pyrex® 7740 (Corning), Duran® (Schott Glass), or Kimax® KG-33 (Kimble) glass.

    When working under variable temperature conditions, the tube diameter specifications narrow and tighten even more to take account of any slight thermal expansions or contractions in the ceramic turbine.

    To meet this stringent diameter requirement, Norell has developed a line of NMR sample tubes, including both 5 mm and 3 mm O.D. sizes, that adhere to strict outside diameter specifications that are very tightly controlled.

    Download Select Series™ Document Here
