Standard Series™ NMR Sample Tubes • 5mm • 8 Inch • 400 MHz • High-Precision • 5 Pack
Details

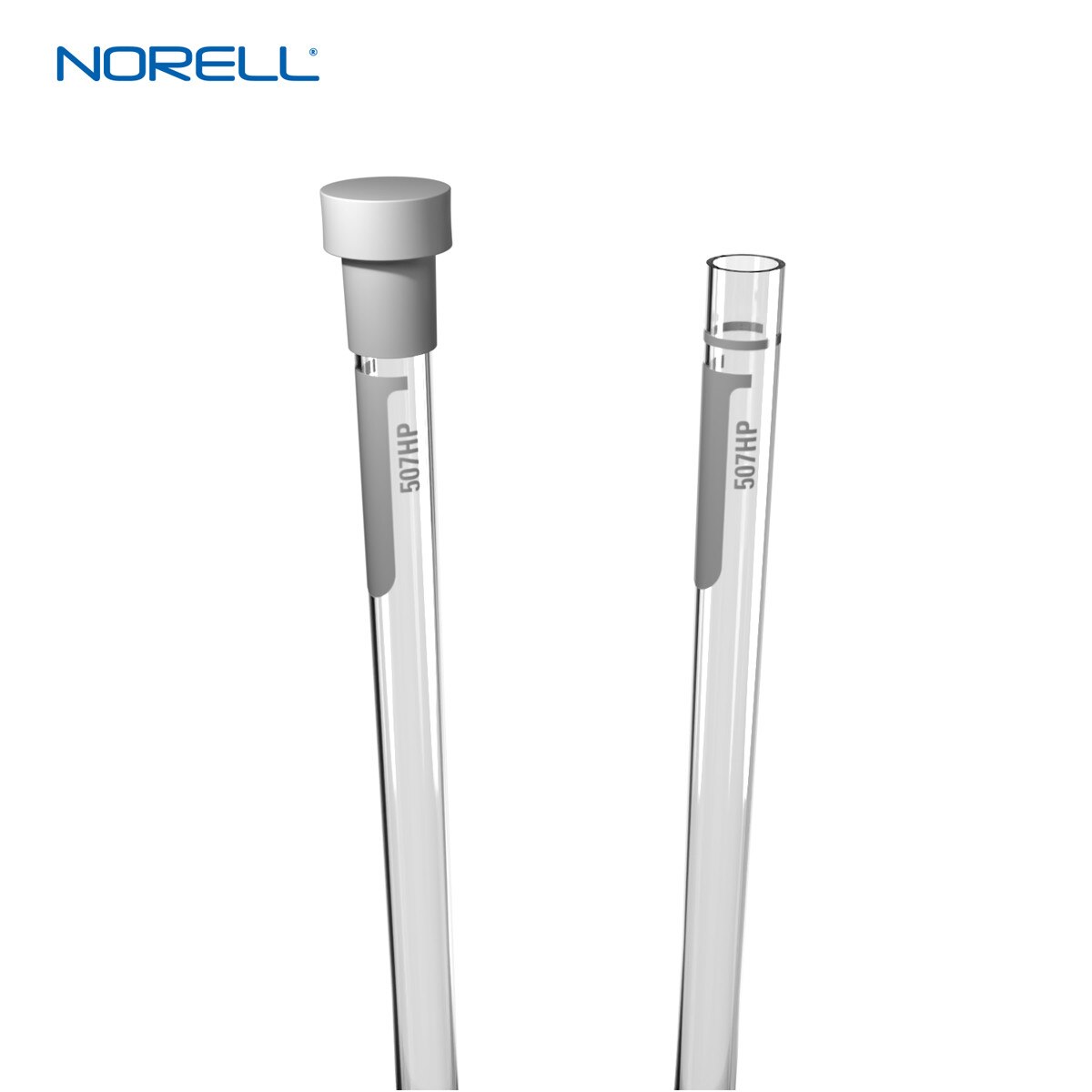

Standard Series™ High-Precision NMR Tubes, 5 Pack
- 5 mm
- 400 MHz

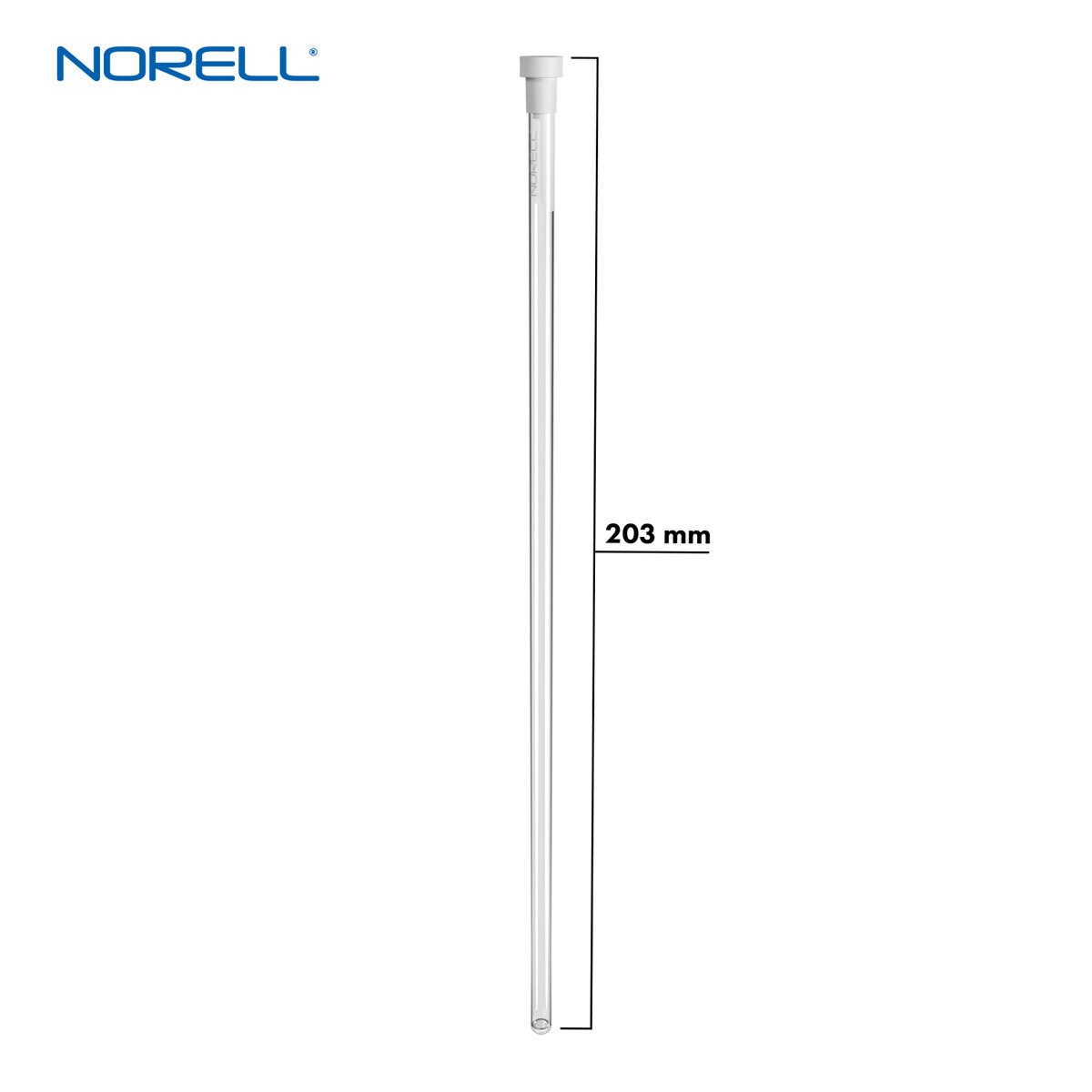

- 8 Inch (203 mm)
- For Routine NMR
- Caps Included
- O.D.: 4.97 ± 0.013 mm / I.D.: 4.20 ± 0.025 mm
- Concentricity (mm): 0.007
- Camber ± (mm): 0.019
Our “Standard Series™” NMR tubes are manufactured out of ASTM Type 1 Class B glass, commonly referred to as N-51A. Applications that are suited for using this type of glass are routine NMR where samples are run under room temperatures with no thermal gradients. It is therefore not recommended to fuse this glass with standard vacuum manifolds and the like, since these are generally made out of Type 1 Class A glass. Each NMR tube is checked for concentricity and camber specifications utilizing the latest computer technology.
Download Standard Series™ Document Here
