Sample Vault Series™ NMR Sample Tubes • 5mm • 7 Inch • 700 MHz • Closed Port • 96 Pack

SKU SVCP-5-178-96PK
$329.72

Available to Order

Back

Details

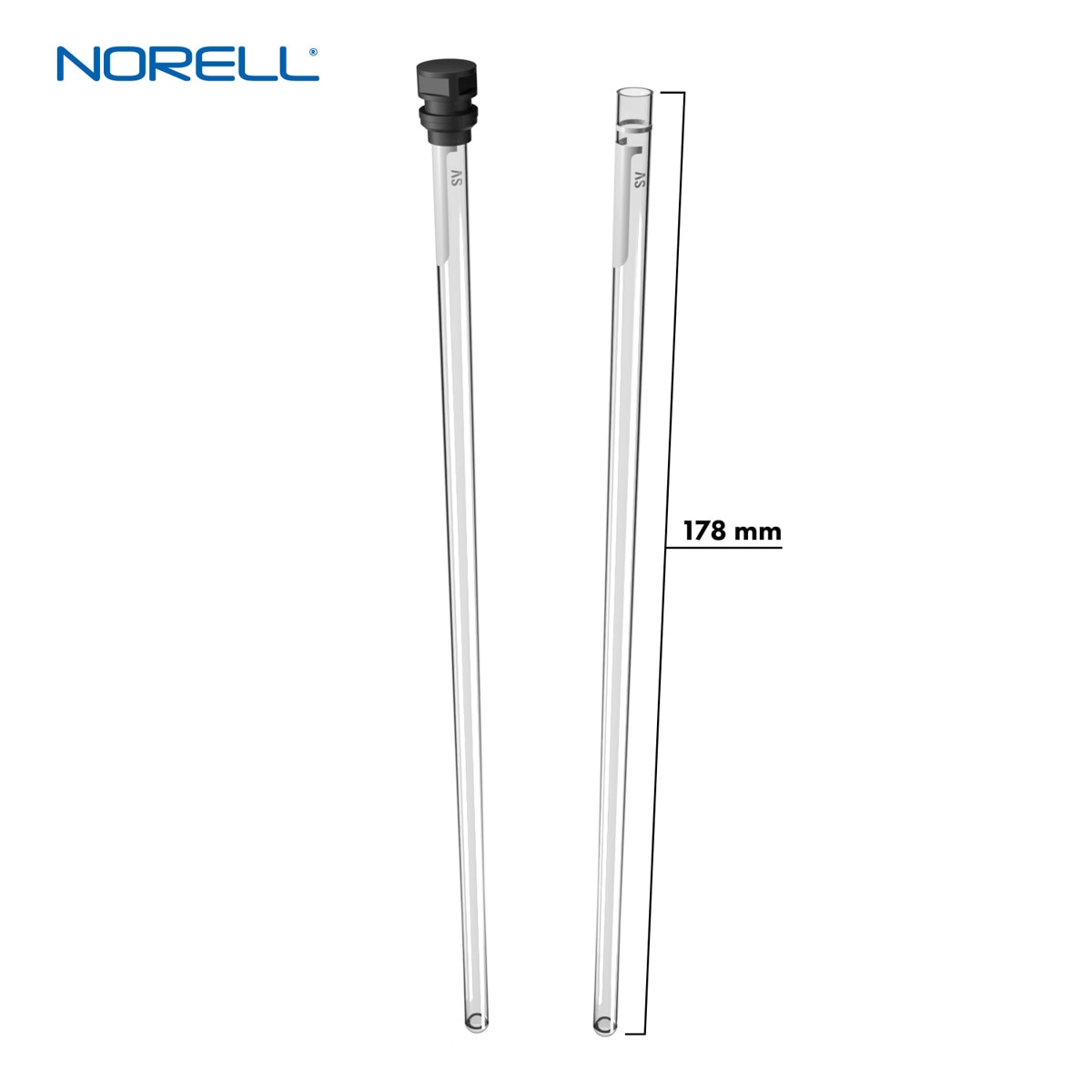

Sample Vault Series™ NMR Tubes, 96 Pack

  • 5 mm
  • Up to 700 MHz
  • 178 mm
  • Packed in Lots of 96
  • Includes closed port, uncoded Sample Vault™ Caps
  • Cap Color: Black
  • O.D.: 5 mm / I.D.: ~4.24 mm
  • Wall Size: 0.38 mm
  • Concentricity: 40 μm
  • Camber: 60 μm

    Sample Vault™ Series NMR tubes with Sample Vault™ caps (U.S. Patent No. 8,054,080), are engineered for a new generation of high-throughput lab automation systems, including the Bruker SampleJet.

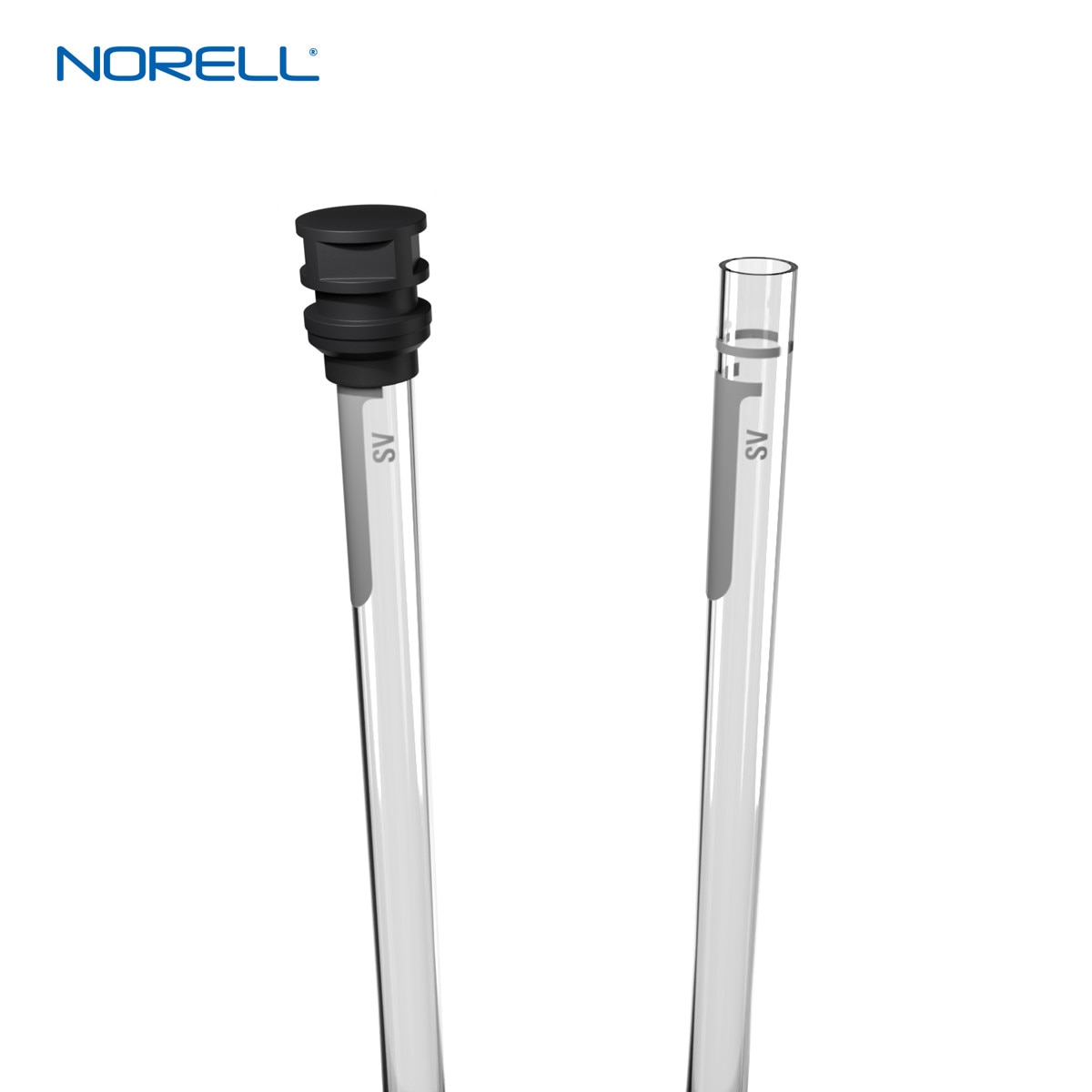

    Our patented design incorporates a white band positioned on the NMR tube that aligns with the base of the cap, indicating a properly locked position. Together, our Sample Vault™ caps and Sample Vault™ tubes form an integrated closure system for fail-safe delivery of your sample into the magnet.

    Download Sample Vault Series™ Document Here
