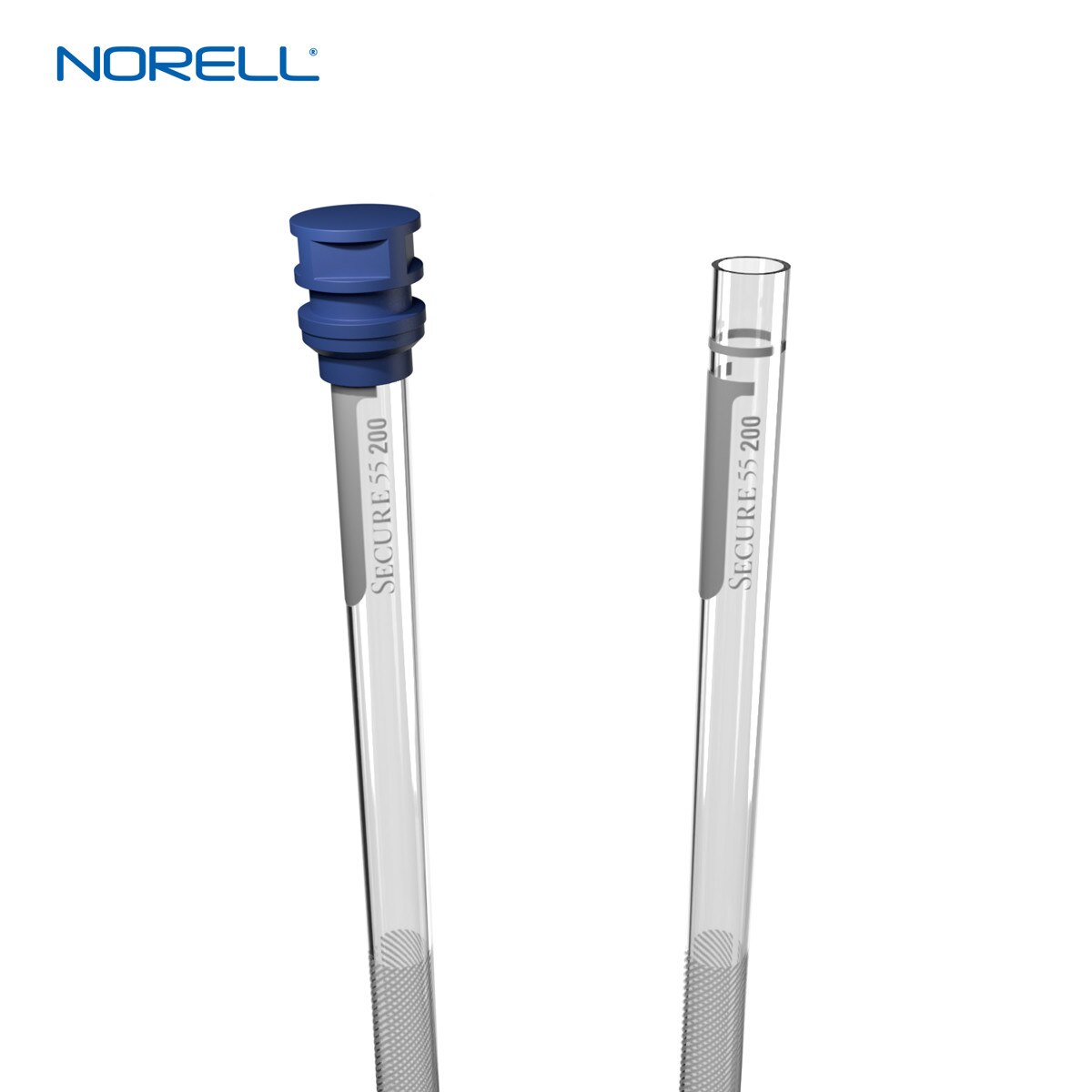

Secure Series™ NMR Sample Tubes • Secure 55 Series • 5mm • 7 Inch • 200 MHz • 25 Pack
Details
Secure Series™ NMR Tubes 25 Pack
- 5 mm
- 200 MHz

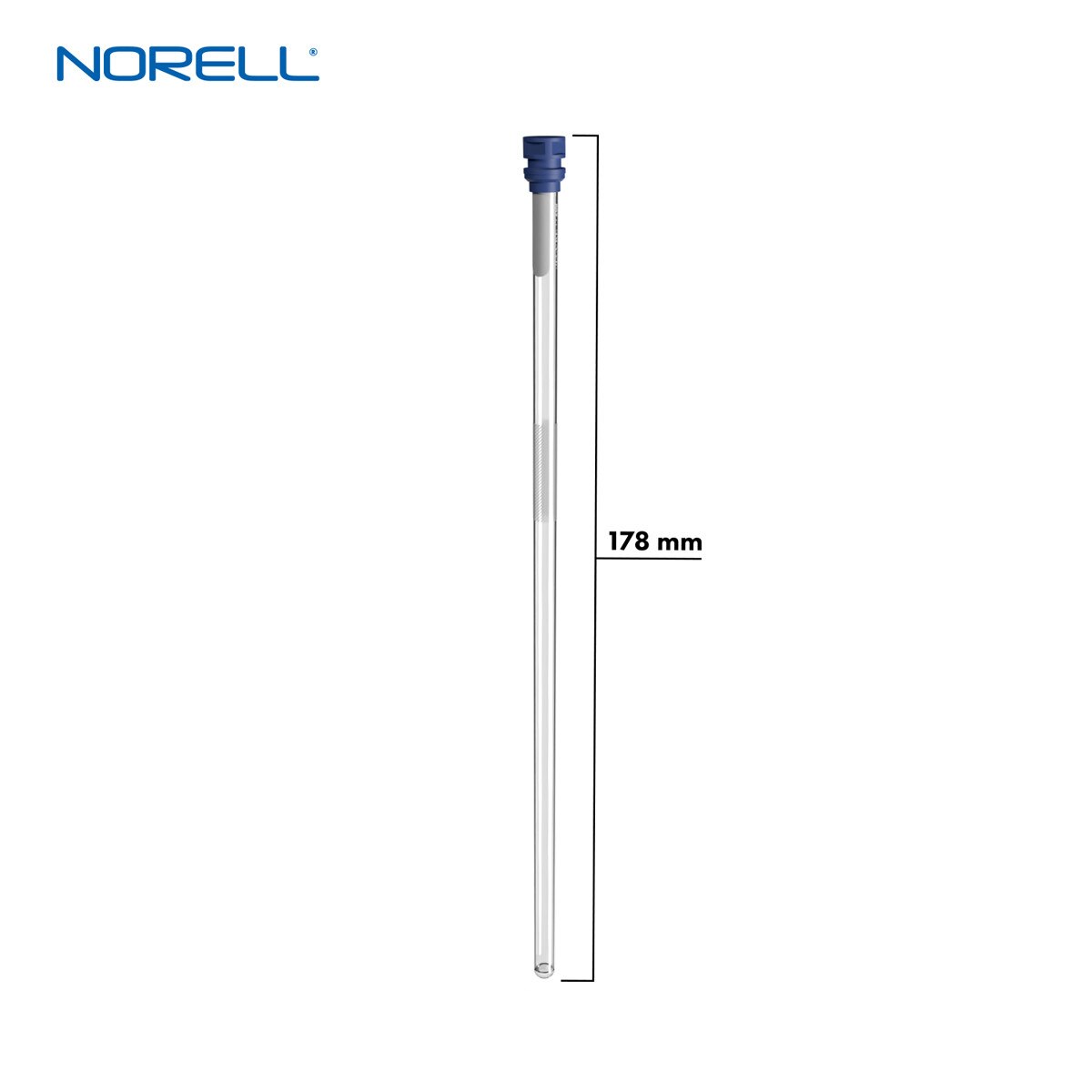

- 7 Inch (178 mm)
- Includes “Norloc™ with Security Band” Caps

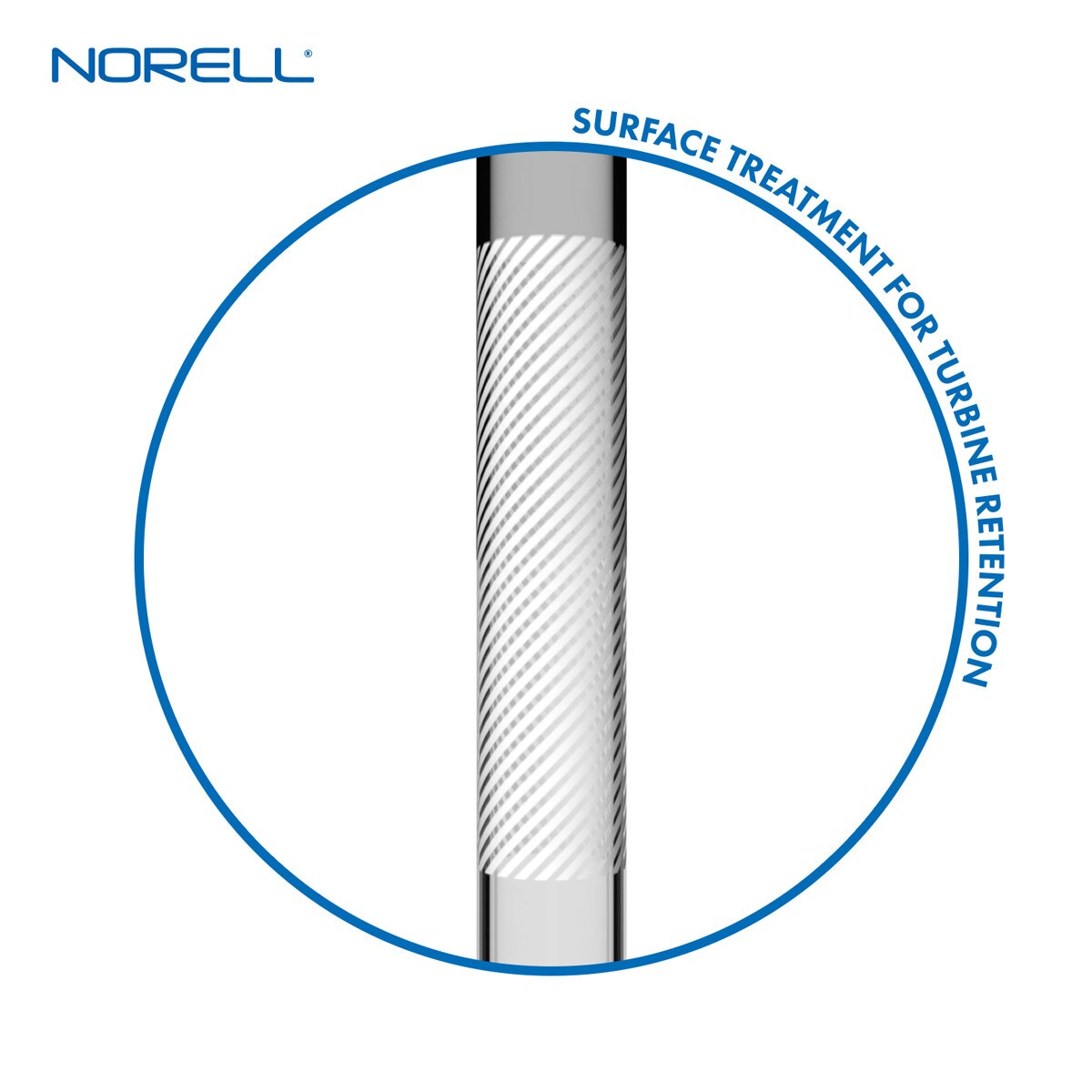

- A patented proprietary surface treatment with a unique textured surface ensures precise and positive spinner turbine retention
- Compatible with Bruker or JEOL Spinner Turbines
- O.D.: 4.97 ± 0.030 / I.D.: 4.20 ± 0.030
- Concentricity (mm): 0.010
- Camber ± (mm): 0.038
The Secure 55 Series™ NMR tubes are made from ASTM Type I Class B borosilicate glass ("high expansion" borosilicate glass such as Kimble N-51A or equivalent) and parallel the properties of the Standard Series™ NMR tubes from Norell®.
Secure Series™ NMR tubes feature several patented design elements that add a superior level of sample containment and isolation, safeguarding the integrity of precious or critical NMR samples and assuring secure retention of the NMR tube in the spinner turbine.

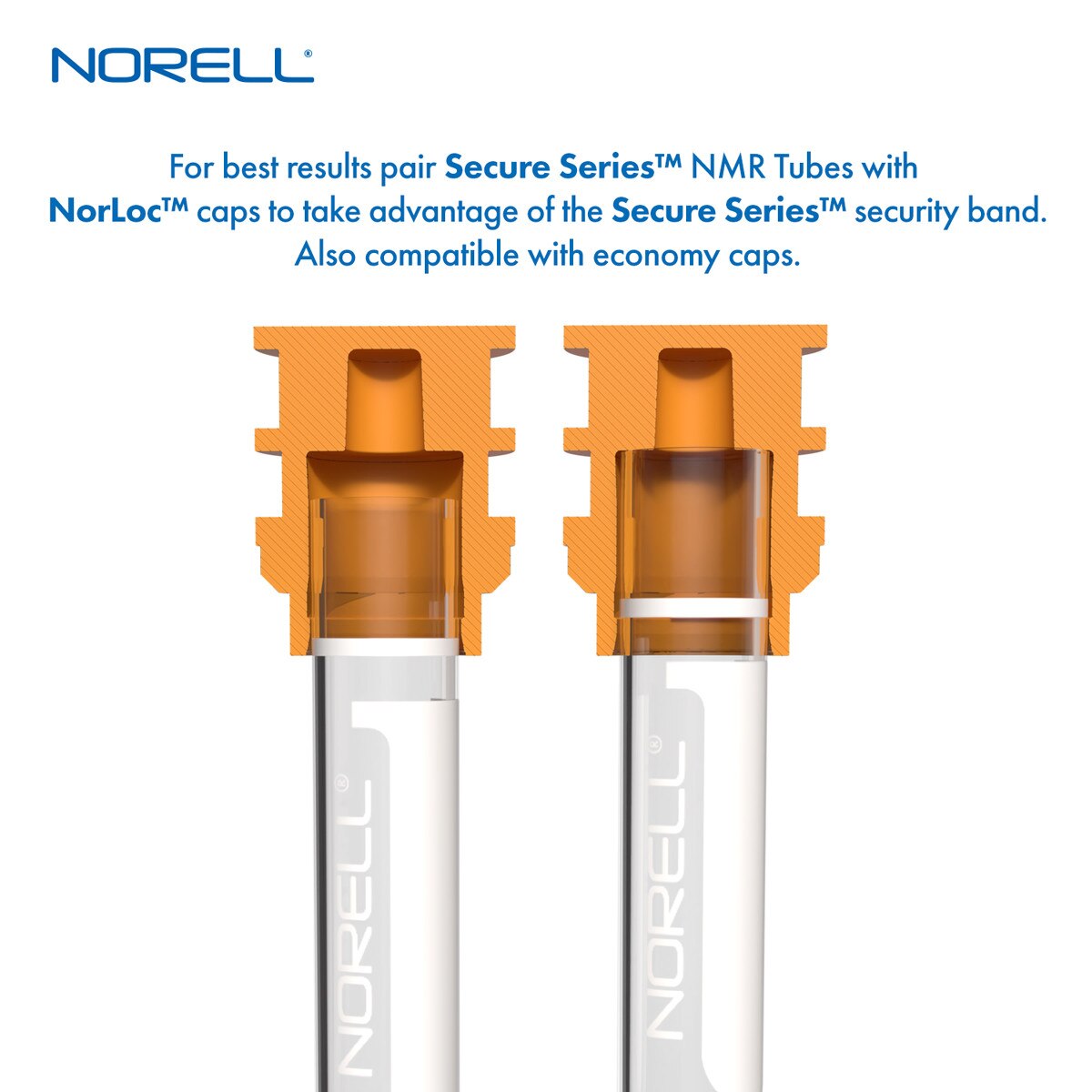

Secure Series™ NMR Tubes ship with our patented NorLoc Caps™ featuring a Security Band™ that engages and locks into the NorLoc II Security Cap™, securely joining the cap to the NMR tube.
Download Secure Series™ Document Here
