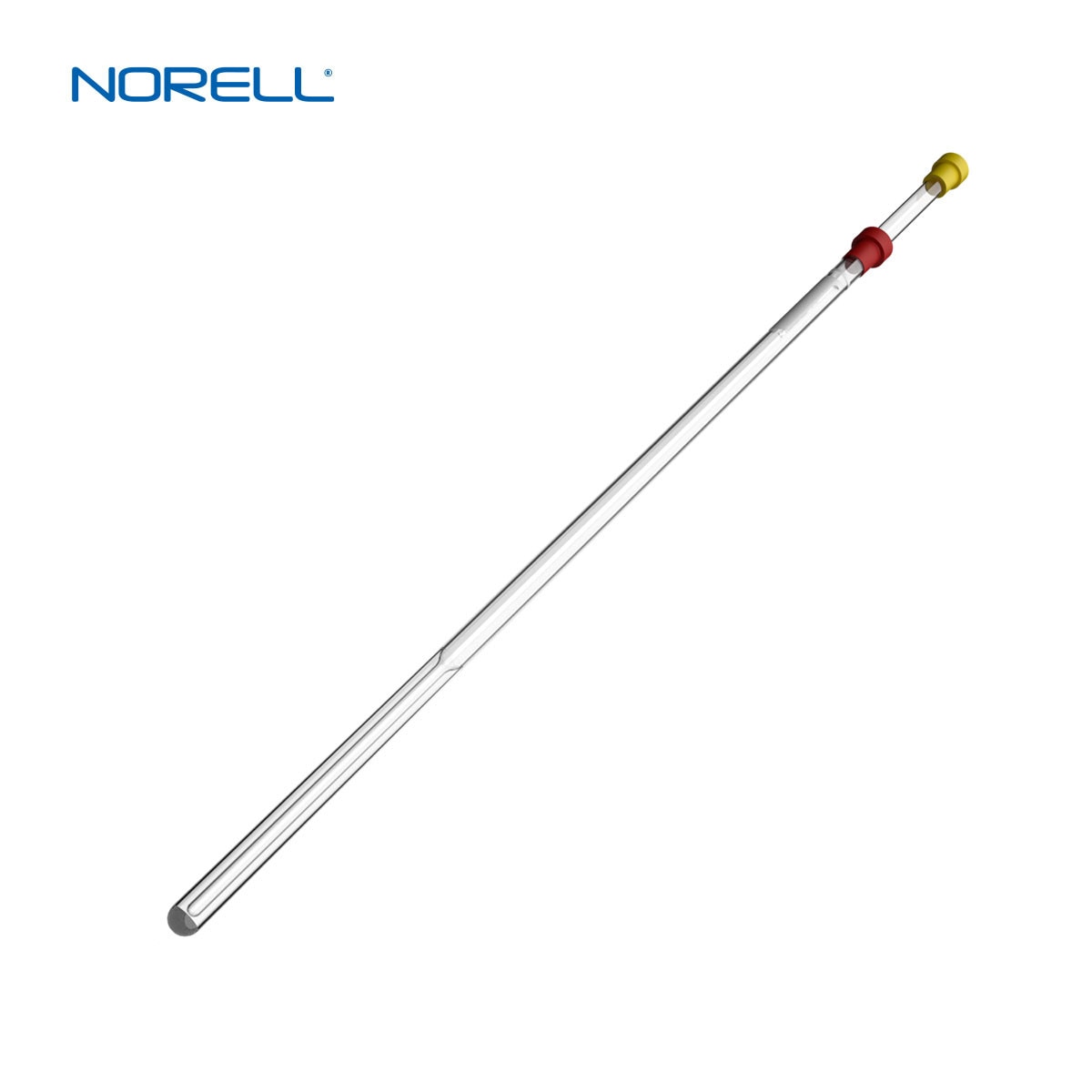

Coaxial Insert for Bruker Spectrometers • Quartz • 5mm

Coaxial Inserts for NMR Sample Tube for Bruker Spectrometers

• Tube: 5 mm
• Probe: Bruker
• Stem O.D.: 3 mm
• Stem Length: 50 mm
• Stem Capacity: 175 μl
• Sample Capacity: 285 μl

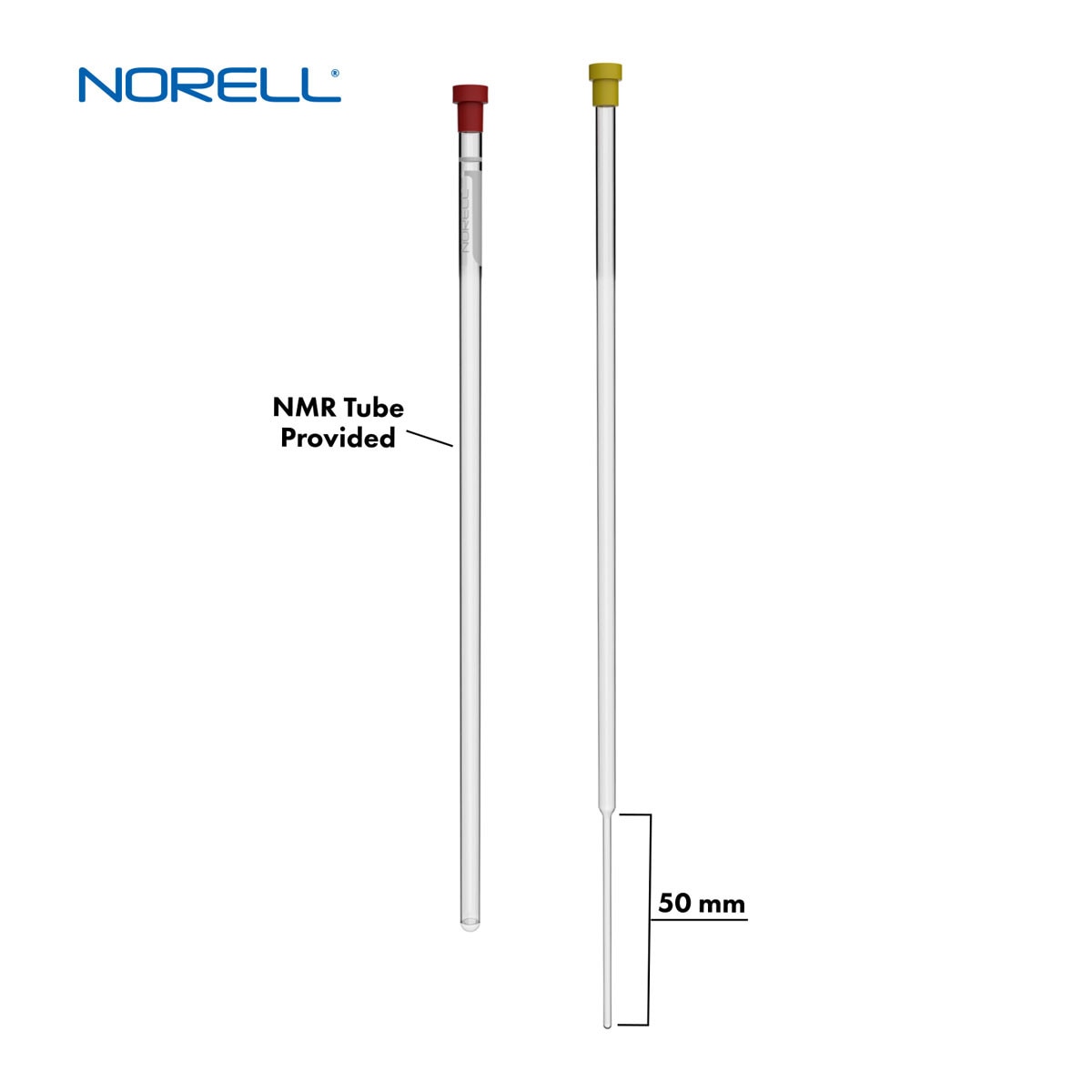

  4 mm Quartz Tube W/50 mm STEM. Includes one 5 mm, S-5-400-7 NMR tube to be used with the Coaxial Insert.

  50 mm Stem OD is 3 mm, Stem Sample Capacity is 175 μL

  Please note: we cannot guarantee the fit of any NMR tube other than the one that is provided with the insert.

  Download Coaxial Insert Document Here
