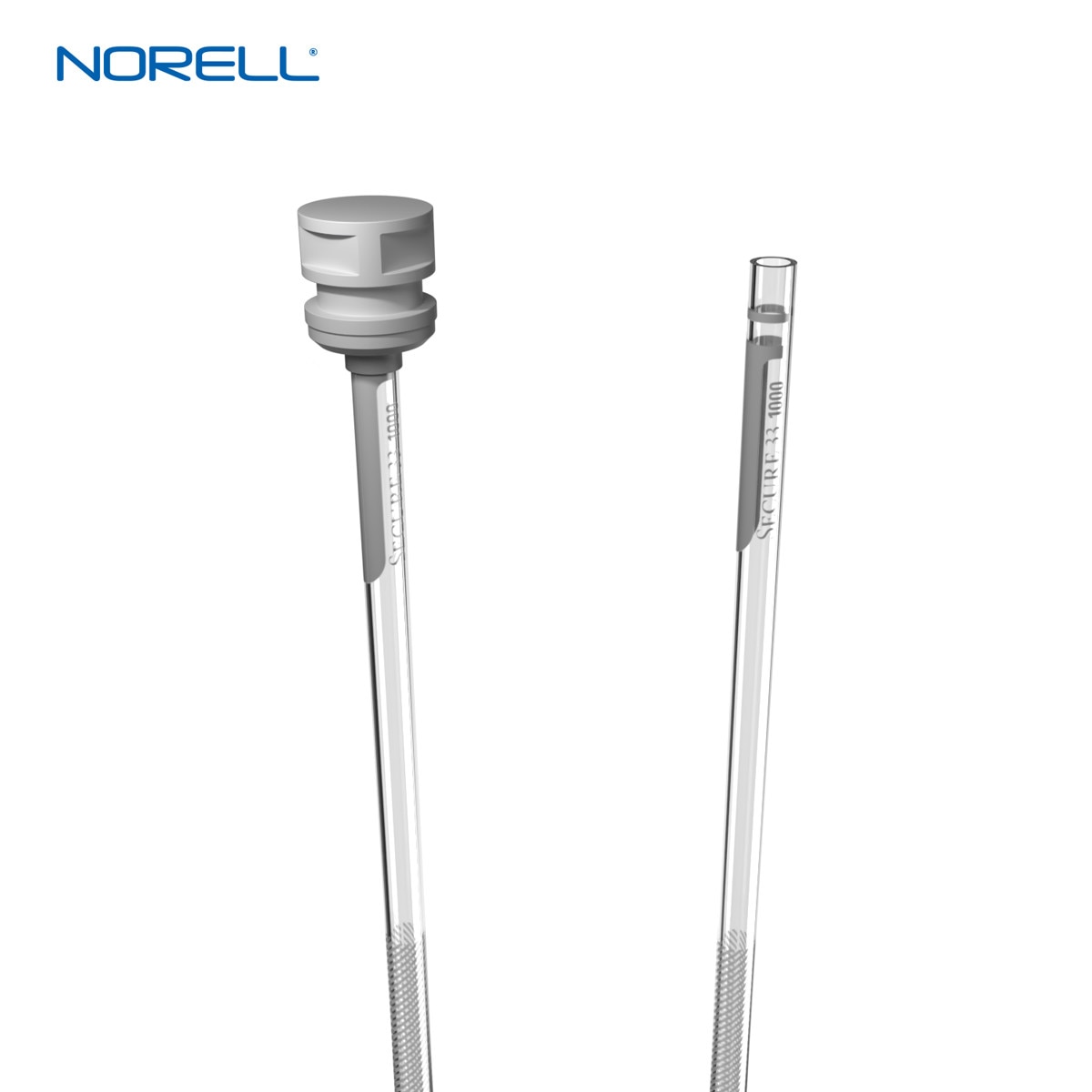

Secure Series™ NMR Sample Tubes • Secure 33 Series • 3mm • 8 Inch • 1000 MHz • 5 Pack
Details
Secure Series™ NMR Tubes 5 Pack
- 3 mm
- 1000 MHz

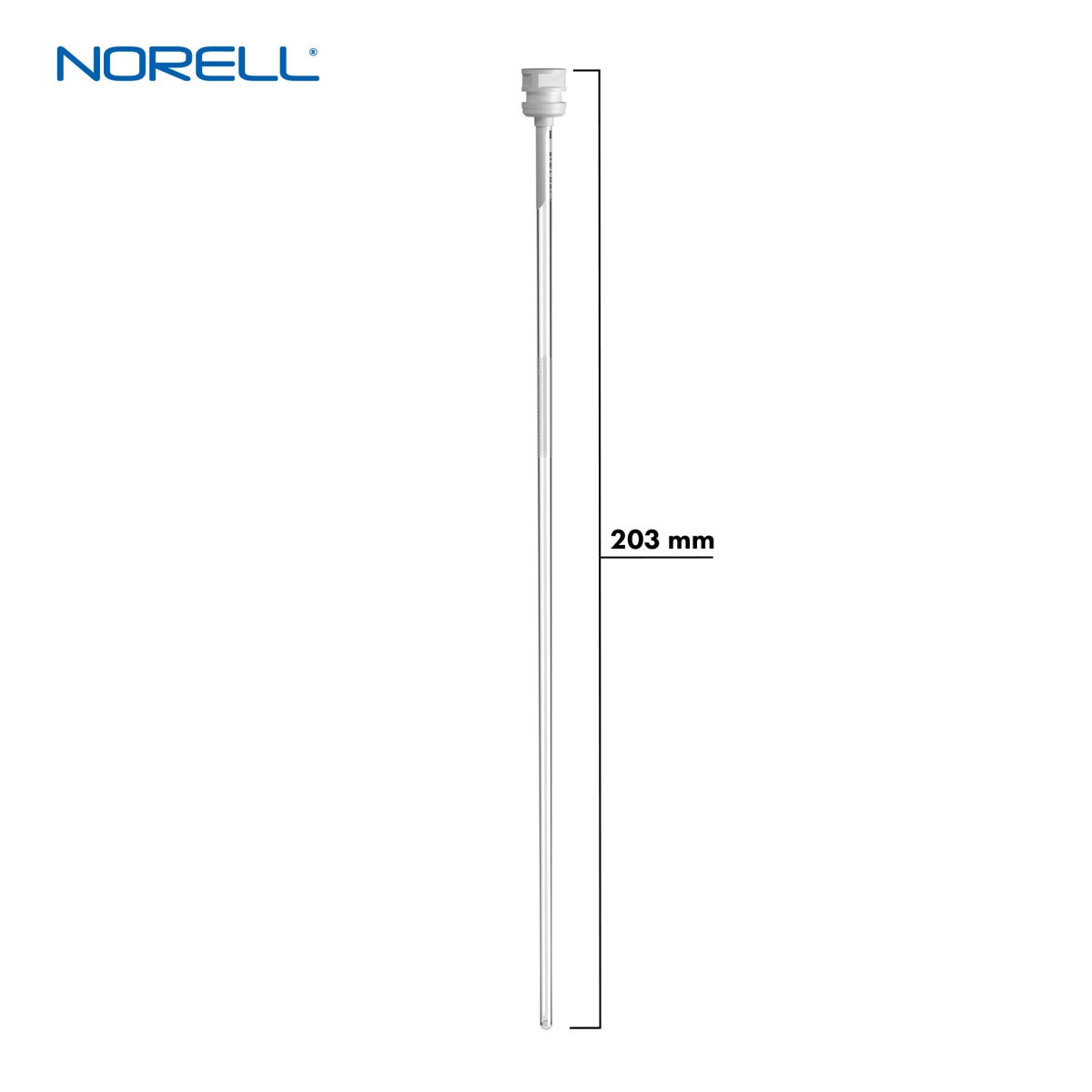

- 8 Inch (203 mm)
- Includes “Norloc™ with Security Band” Caps

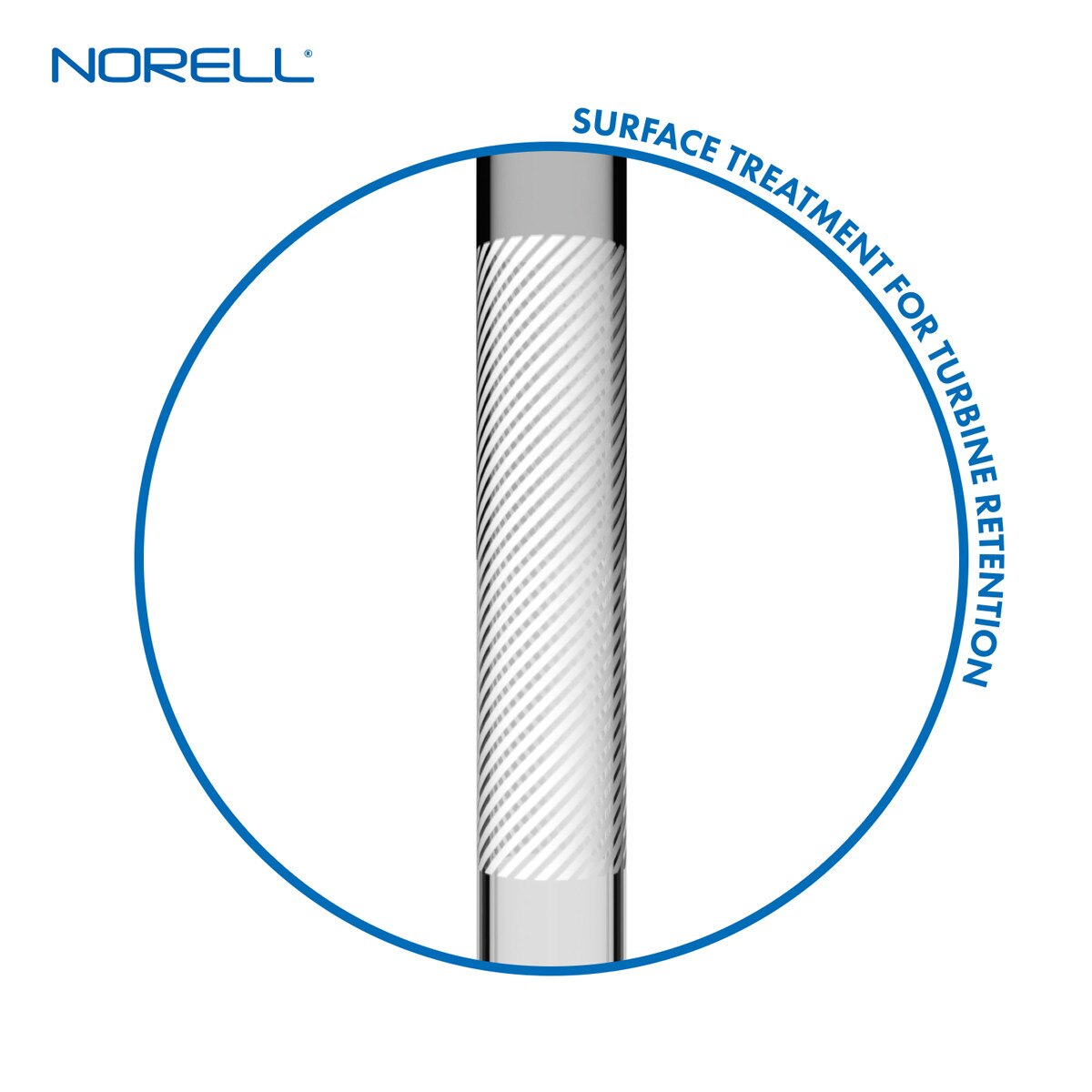

- A patented proprietary surface treatment with a unique textured surface ensures precise and positive spinner turbine retention
- Compatible with Agilent/Varian or JEOL Spinner Turbines
- O.D.: 2.99 ±0.003 / I.D.: 2.41 ± 0.006
- Concentricity (mm): 0.0018
- Camber ± (mm): 0.0027
The Secure 33 Series™ NMR tubes are made from ASTM Type I Class A borosilicate glass ("low expansion" borosilicate glass such as Corning Pyrex® 7740 or equivalent) and match the properties of the Select Series™ NMR tubes from Norell®.
Secure Series™ NMR tubes feature several patented design elements that add a superior level of sample containment and isolation, safeguarding the integrity of precious or critical NMR samples and assuring secure retention of the NMR tube in the spinner turbine.

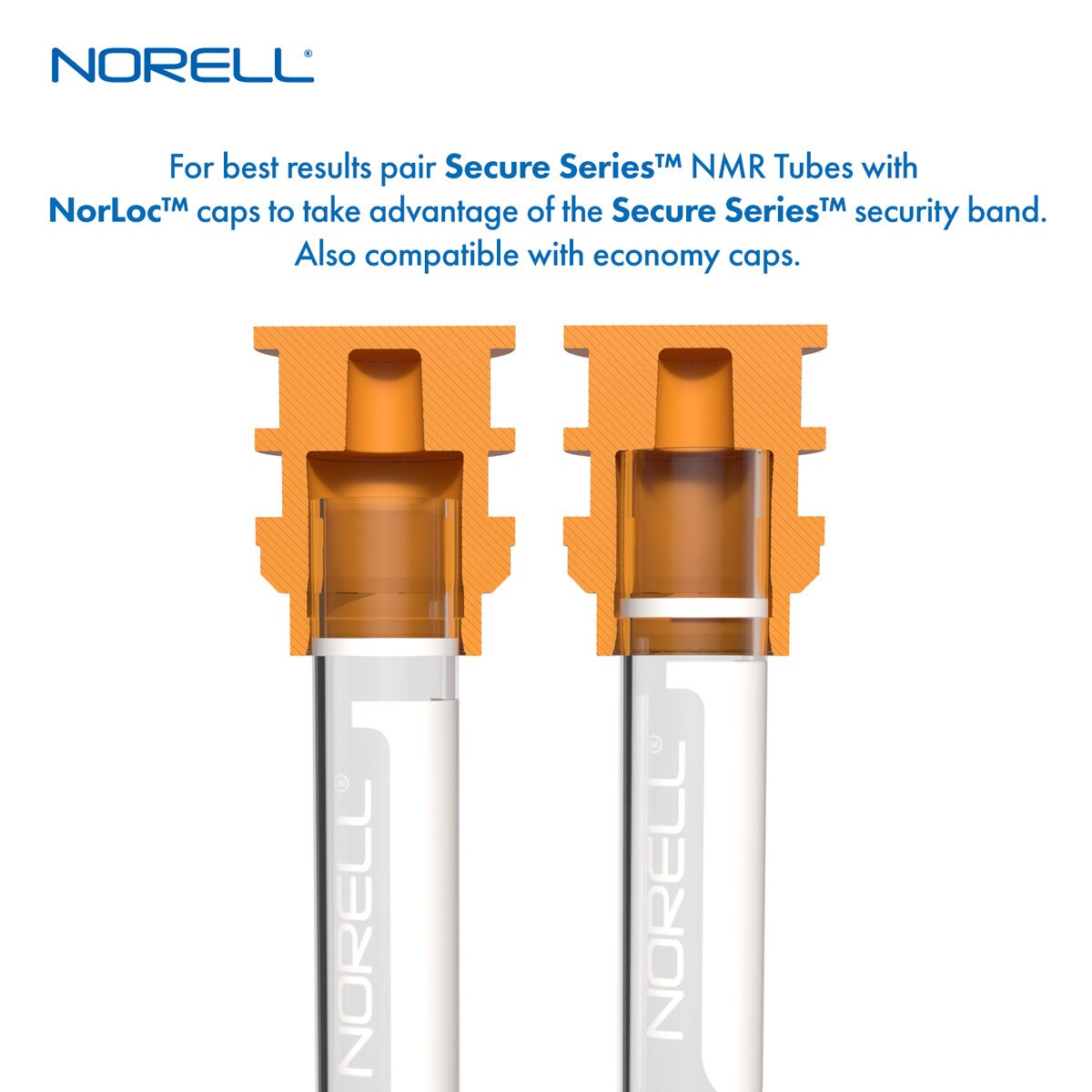

Secure Series™ NMR Tubes ship with our patented NorLoc Caps™ featuring a Security Band™ that engages and locks into the NorLoc II Security Cap™, securely joining the cap to the NMR tube.
Download Secure Series™ Document Here
