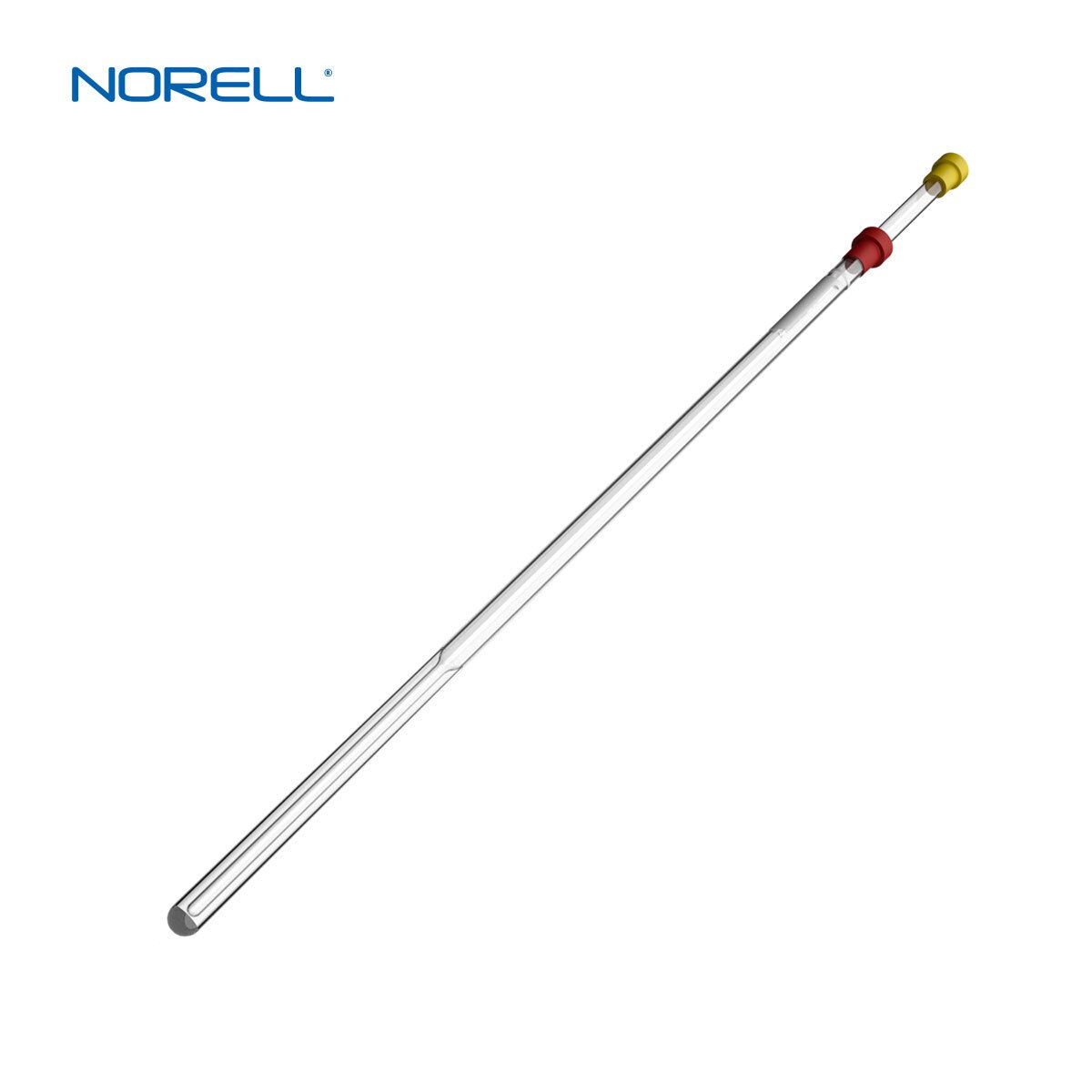

Coaxial Insert for Varian Spectrometers • Quartz • 5mm

Coaxial Inserts for NMR Sample Tube for Varian Spectrometers

• Tube: 5 mm
• Probe: Varian
• Stem O.D.: 3 mm
• Stem Length: 60 mm
• Stem Capacity: 210 μl
• Sample Capacity: 340 μl

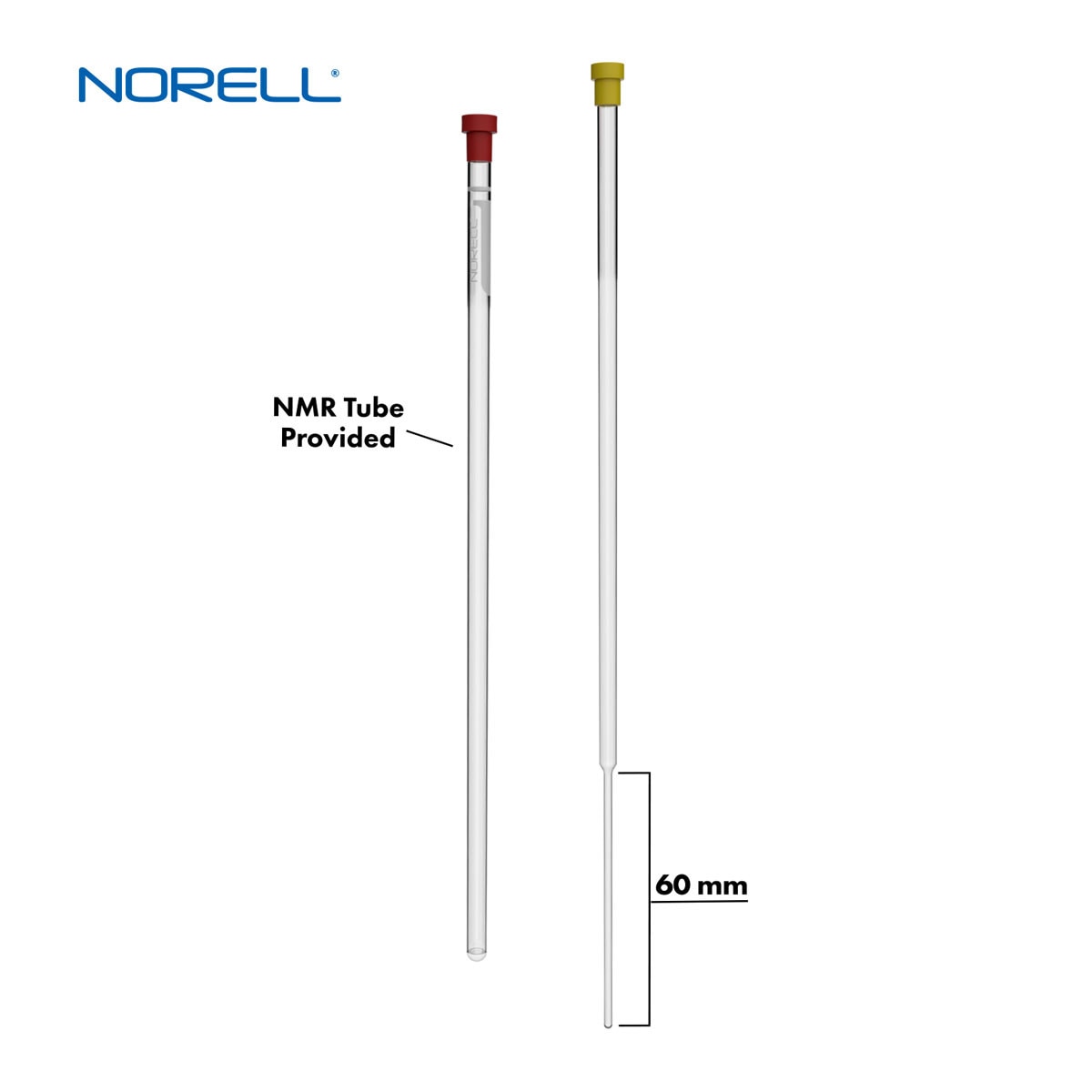

  4 mm Quartz Tube W/60 mm STEM. Includes one 5 mm, S-5-400-7 NMR tube to be used with the Coaxial Insert.

  60 mm Stem OD is 3 mm, Stem Sample Capacity is 210 μL

  Please note: we cannot guarantee the fit of any NMR tube other than the one that is provided with the insert.

  Download Coaxial Insert Document Here
