Secure Series™ NMR Sample Tubes • Secure 55 Series • 5mm • 8 Inch • 300 MHz • 25 Pack

SKU S55-0300-050-2030
$281.31

Available to Order

Back

Details

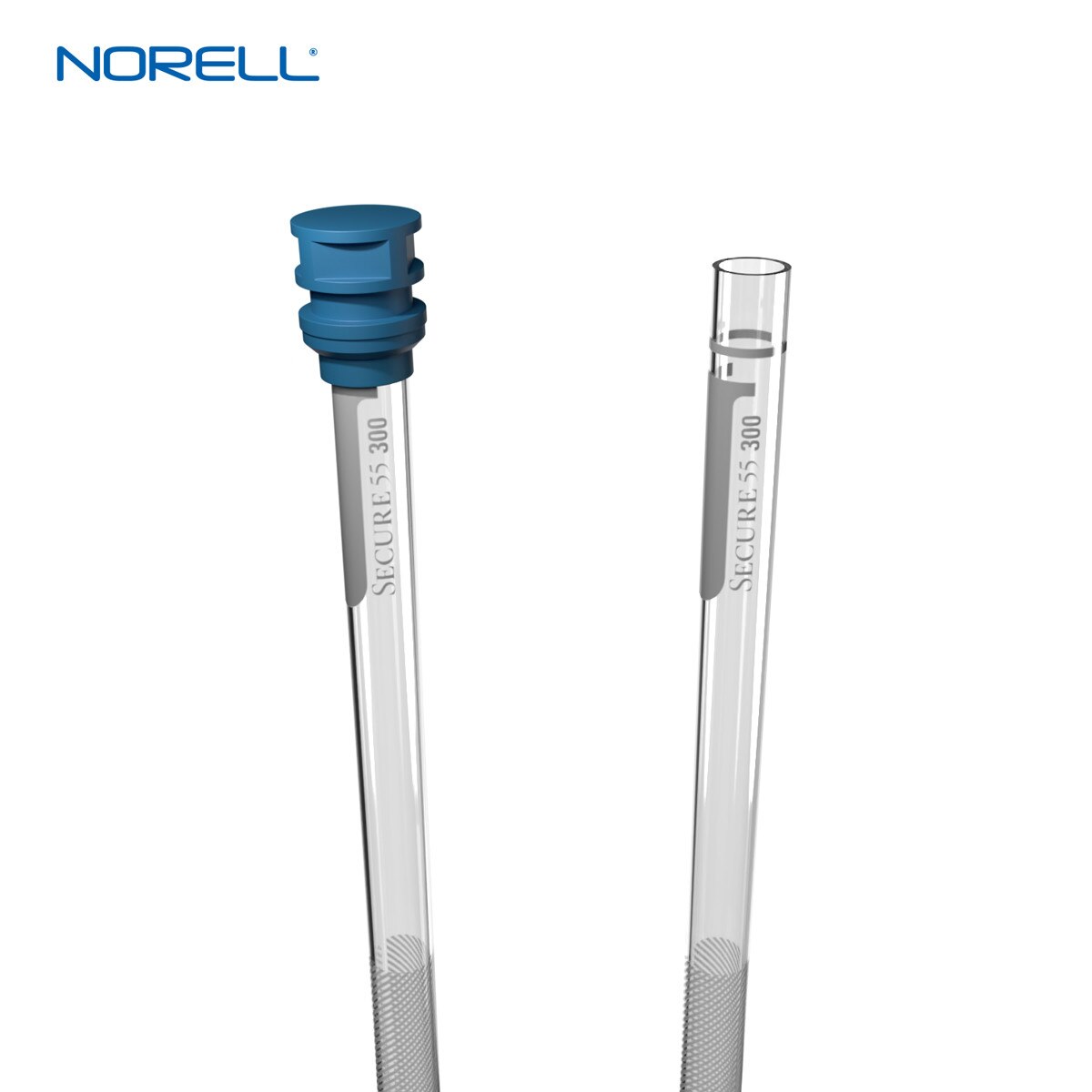

Secure Series™ NMR Tubes 25 Pack

  • 5 mm
  • 300 MHz

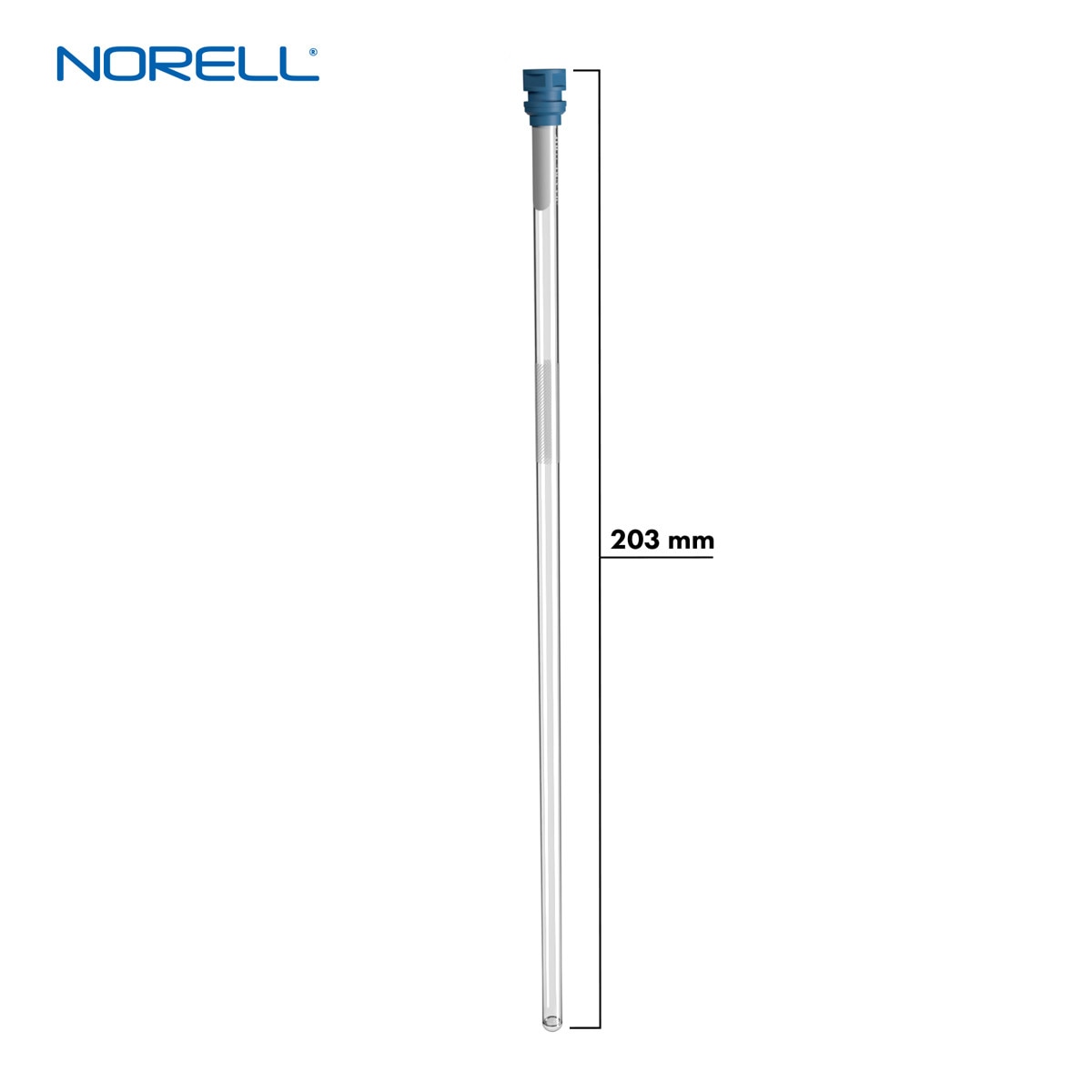

  • 8 Inch (203 mm)
  • Includes “Norloc™ with Security Band” Caps

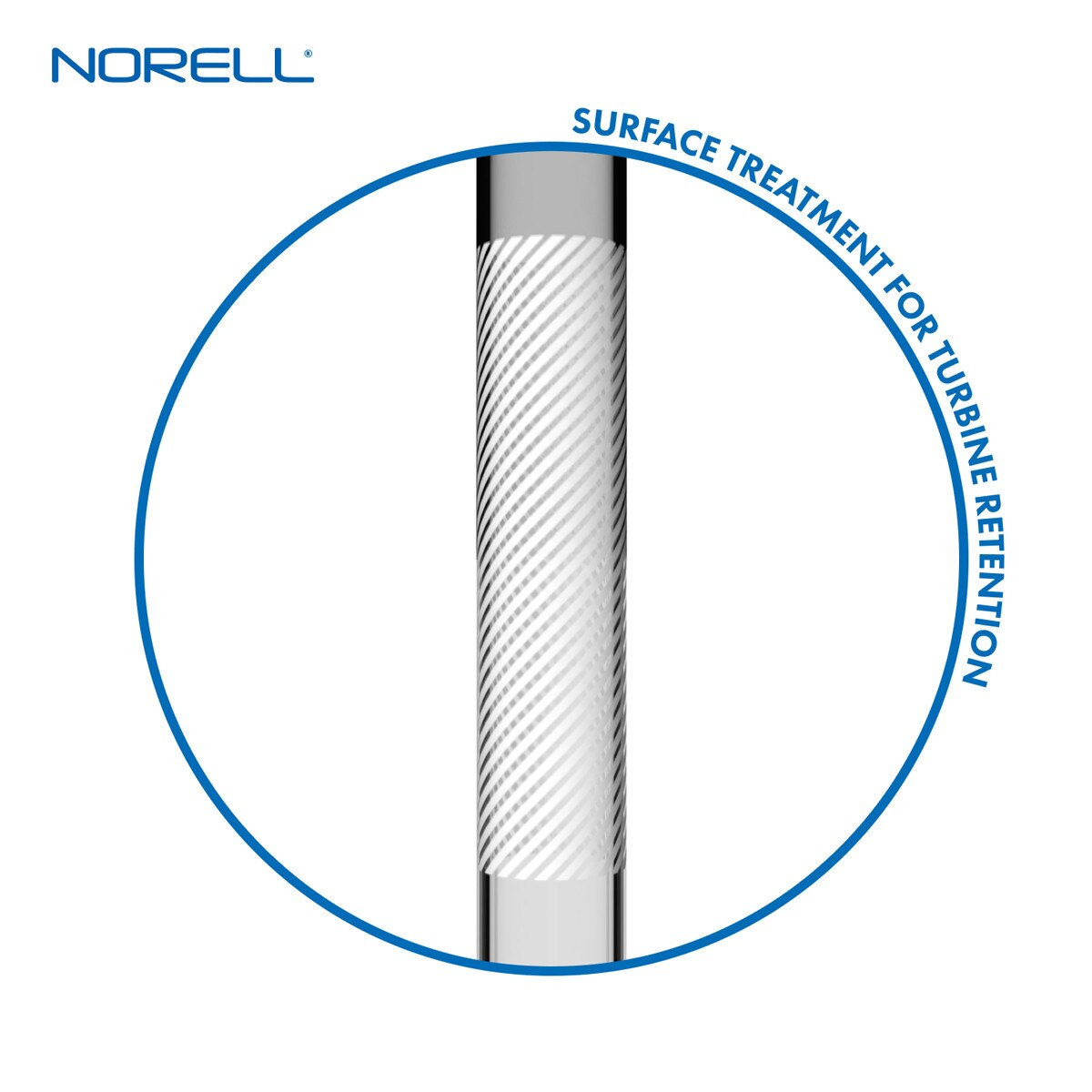

  • A patented proprietary surface treatment with a unique textured surface ensures precise and positive spinner turbine retention
  • Compatible with Agilent/Varian or JEOL Spinner Turbines
  • O.D.: 4.97 ± 0.025 / I.D.: 4.20 ±0.025
  • Concentricity (mm): 0.007
  • Camber ± (mm): 0.025

    The Secure 55 Series™ NMR tubes are made from ASTM Type I Class B borosilicate glass ("high expansion" borosilicate glass such as Kimble N-51A or equivalent) and parallel the properties of the Standard Series™ NMR tubes from Norell®.

    Secure Series™ NMR tubes feature several patented design elements that add a superior level of sample containment and isolation, safeguarding the integrity of precious or critical NMR samples and assuring secure retention of the NMR tube in the spinner turbine.

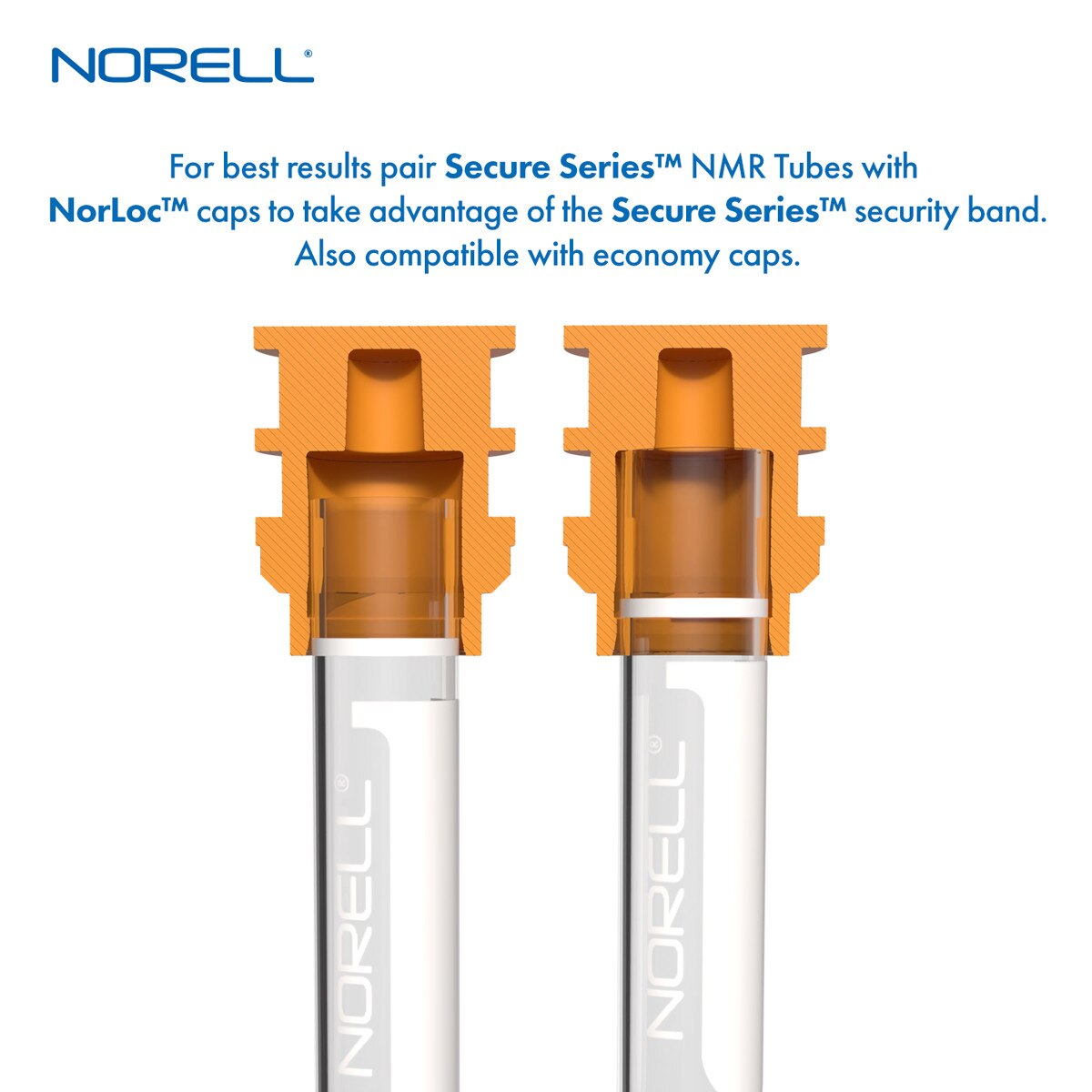

    Secure Series™ NMR Tubes ship with our patented NorLoc Caps™ featuring a Security Band™ that engages and locks into the NorLoc II Security Cap™, securely joining the cap to the NMR tube.

    Download Secure Series™ Document Here
