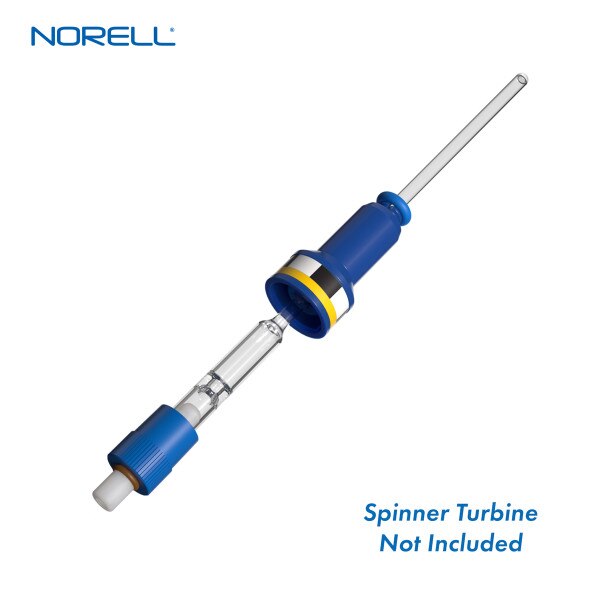

Intermediate Pressure Valved NMR Sample Tube for Auto Sampling • 5mm • 600 MHz • 1 Pack

5 mm Valved NMR Tubes for Intermediate Pressure/Automated Sampling, 1 Pack

• 5 mm
• 600 MHz
• 133 mm Length

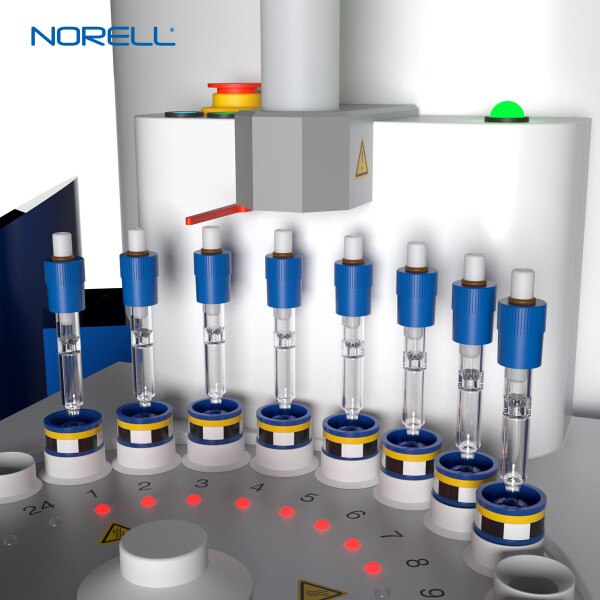

• Sized for Automated Sampling
• Thin Wall
• I.D. (mm) (Volume μl/cm): 4.20 (138)
• Recommended kPa: 600
• Maximum Operating Pressure (bar): 6
• Maximum Operating Pressure (psi): 87

  This valve incorporates an advanced seal design that is superior to alternative valves currently available from other manufacturers. A fluoroelastomer o-ring imparts resilience and a high degree of chemical resistance. A PTFE sheath, forming the primary seal, completely covers the fluoroelastomer o-ring, creating the ultimate barrier against aggressive, reactive substances while providing a totally inert surface.

  These pressure tubes facilitate experiments requiring conditions such as pressurized inert atmosphere blanketing, addition of reactive gaseous reagents under pressure, containment of low boiling point solvents or samples at elevated temperatures, and so on.

  We recommend that the maximum operating pressure should be limited to 600 kPa (6 bar, 87 psi) when using a thin wall pressure tube, up to 1200 kPa (12 bar, 175 psi) if using a heavy wall pressure tube. (Please see accompanying table for complete details).

  Download Valved NMR for Intermediate Pressure Document Here
