Select Series™ NMR Sample Tubes • 5mm • 8 Inch • 300 MHz • Ultra-Precision • 5 Pack

SKU S-5-300-8
$72.17

Available to Order

Back

Details

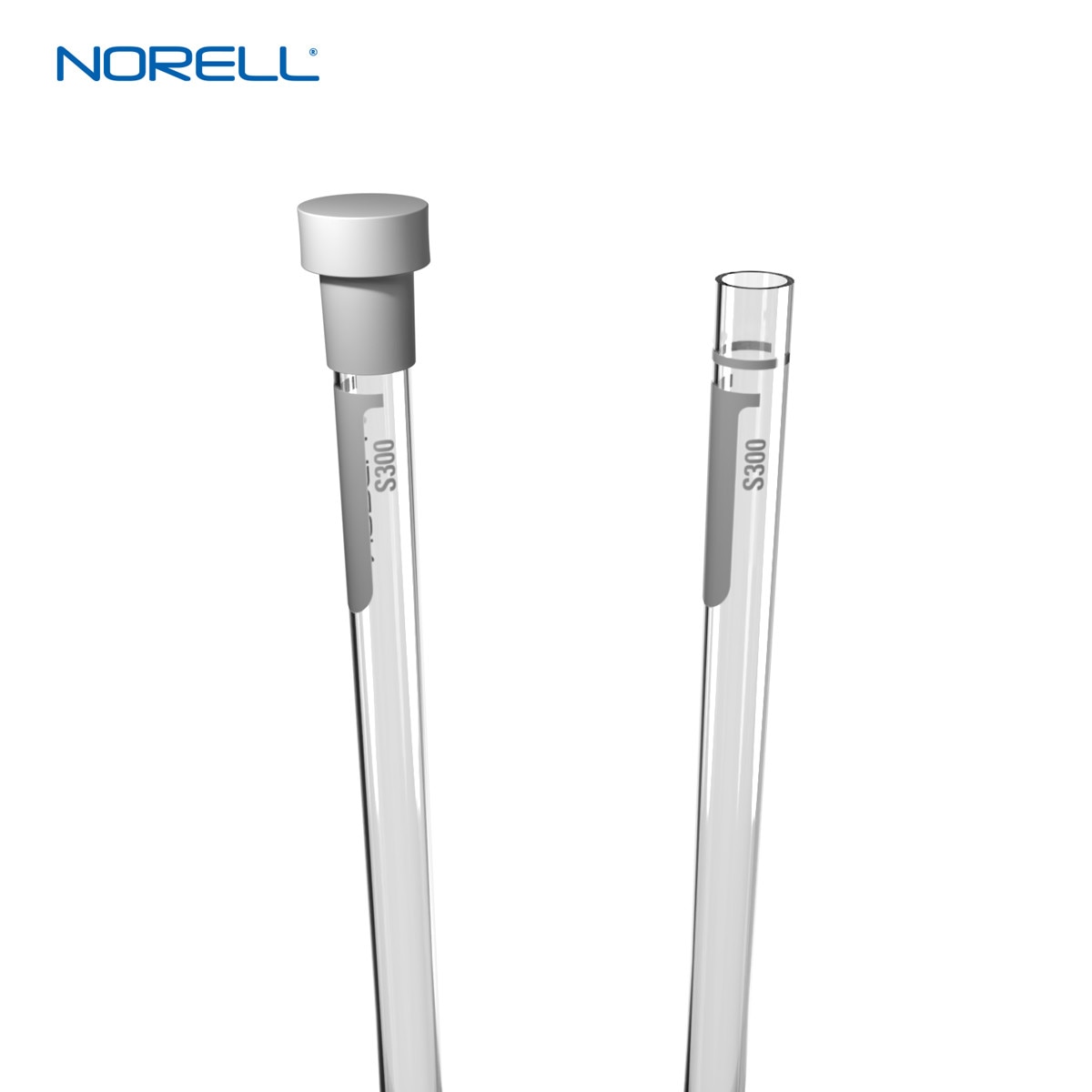

Select Series™ 5 mm, Ultra-Precision NMR Tubes, 5 Pack

  • 5 mm
  • 300 MHz

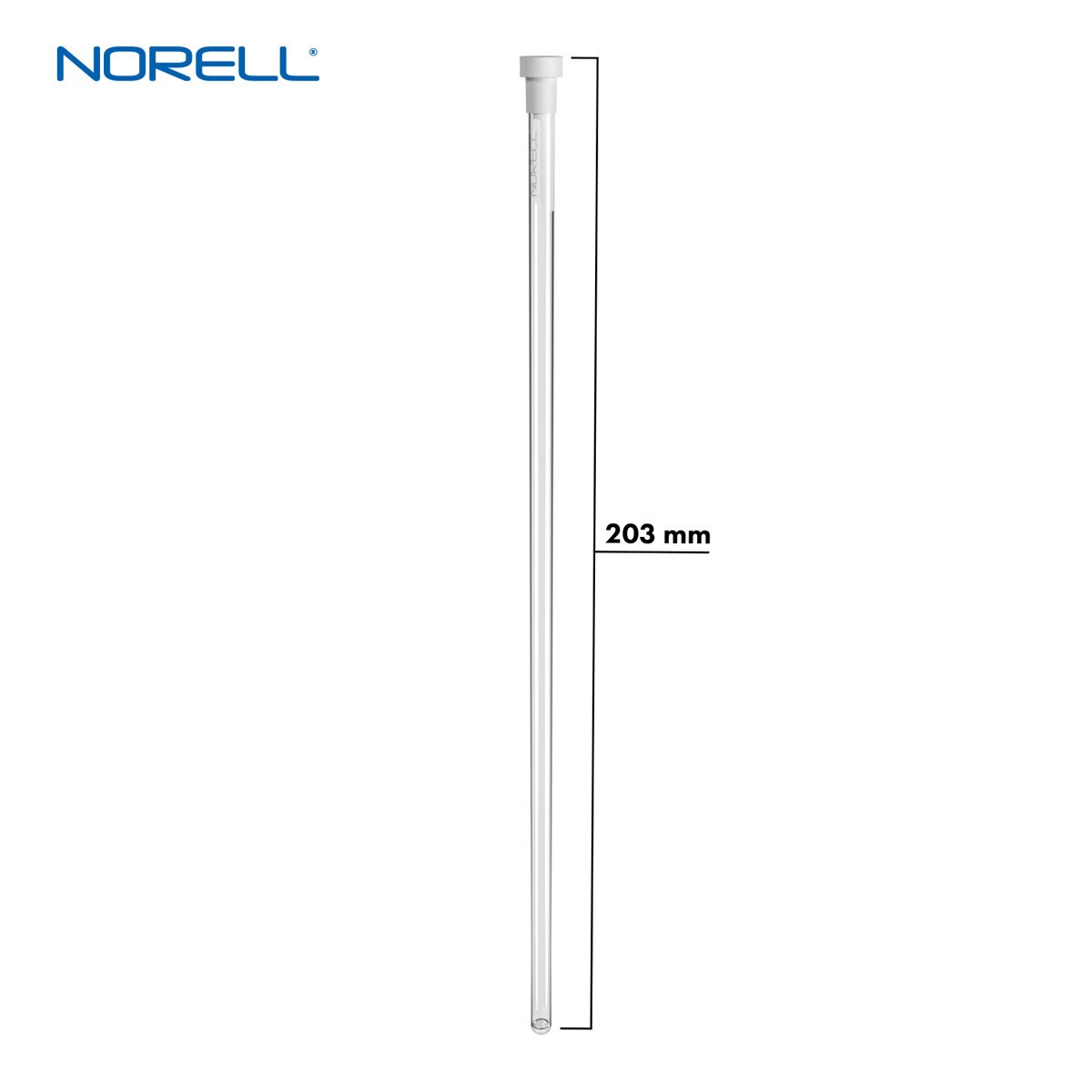

  • 8 Inch (203 mm)
  • Caps Included
  • O.D.: 4.97 ± 0.025 mm / I.D.: 4.20 ± 0.025 mm
  • Concentricity (mm): 0.0070
  • Camber ± (mm): 0.0250

    Our “Select Series™” NMR tubes are manufactured out of ASTM Type 1 Class A glass, commonly referred to as Pyrex® 7740 (Corning), Duran® (Schott Glass), or Kimax® KG-33 (Kimble) glass.

    Key properties that make this glass type desirable for NMR are its high degree of thermal shock resistance and low expansion coefficient. This allows for a greater margin of safety from breakage when used in variable temperature applications and freeze/thaw cycling, or under any other application where large temperature variations are required in the experiment.

    Each NMR tube is checked for concentricity and camber specifications utilizing the latest computer technology.

    Download Select Series™ Document Here
