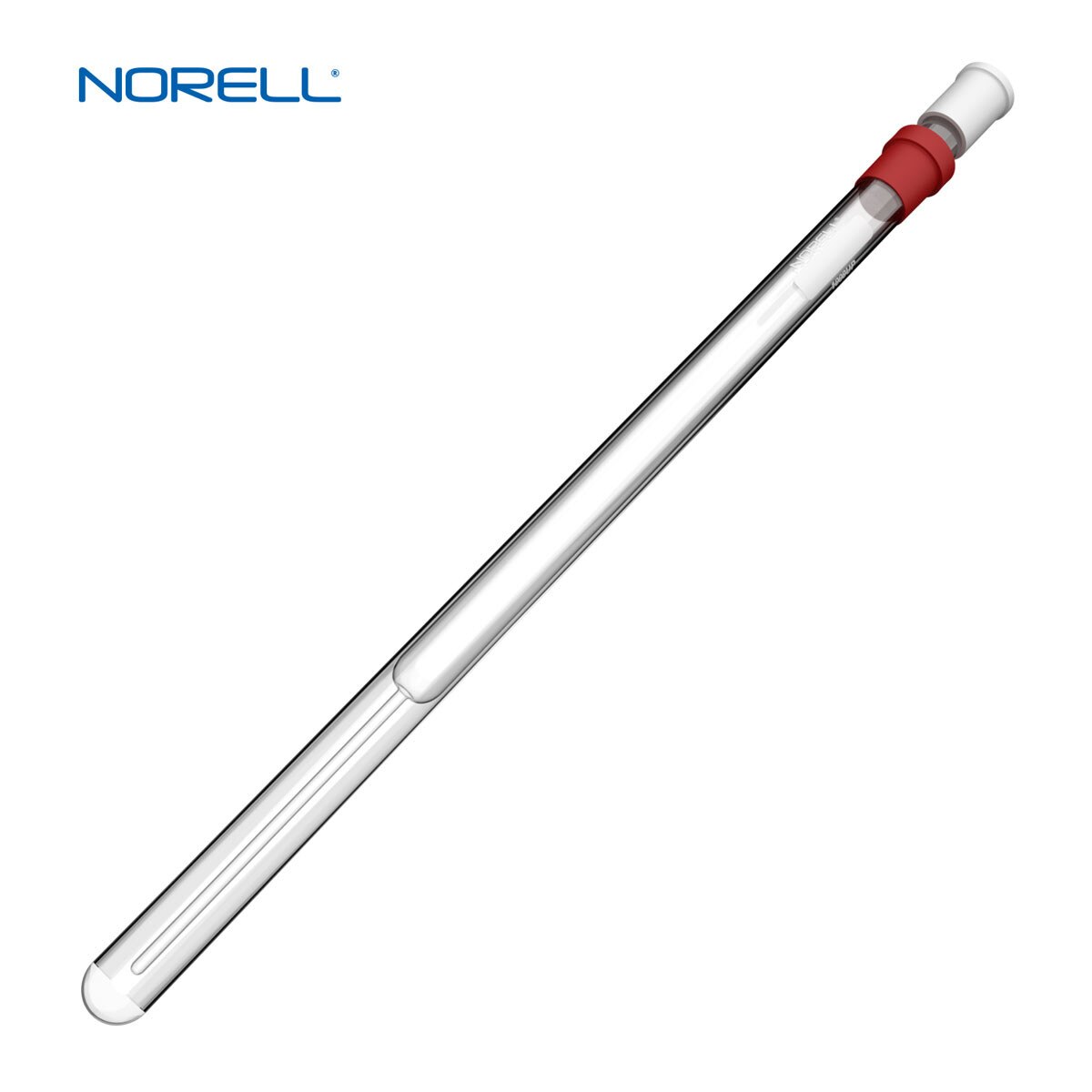

Coaxial Insert for Varian Spectrometers • 10mm

Coaxial Inserts for NMR Sample Tube for Varian Spectrometers

• Tube: 10 mm
• Probe: Varian
• Stem O.D.: 3 mm
• Stem Length: 60 mm
• Stem Capacity: 260 μl
• Sample Capacity: 3.14 ml

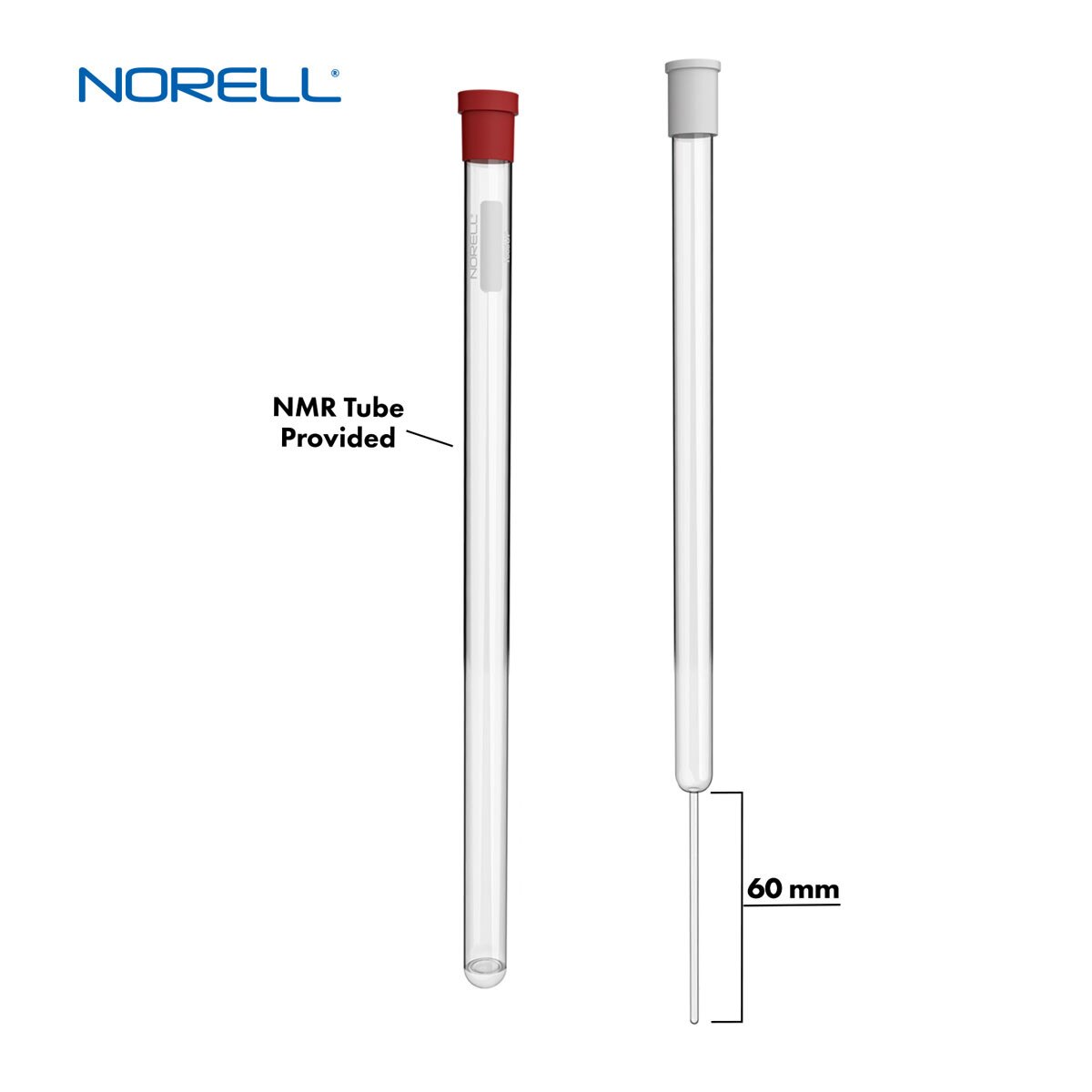

  9 mm TUBE W/60 mm STEM. Includes one 10 mm, 1008-UTW-8 NMR tube to be used with the Coaxial Insert.

  60 mm Stem OD is 3 mm, Stem Sample Capacity is 3.14 ml

  Please note: we cannot guarantee the fit of any NMR tube other than the one that is provided with the insert.

  Download Coaxial Insert Document Here
