Sample Vault Series™ NMR Sample Tube Rack • 1mm O.D. • 103.5mm Length • 900 MHz • Coded • Open Port • 96 Pack

SKU SVOP-1.0-103.5-96PK
$431.16

Available to Order

Back

Details

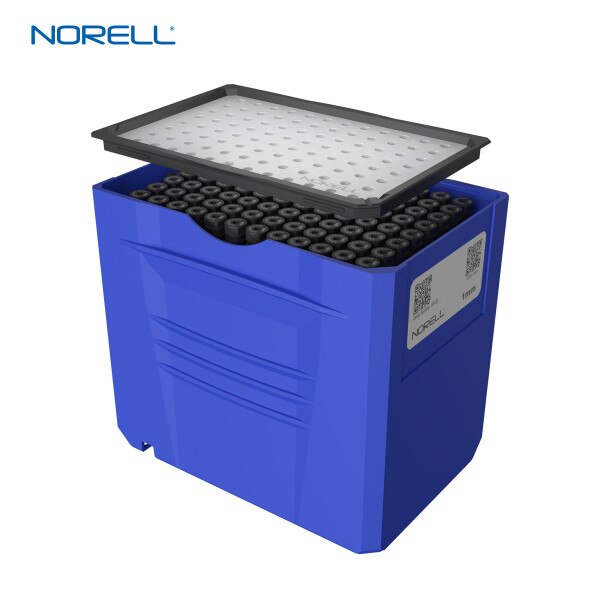

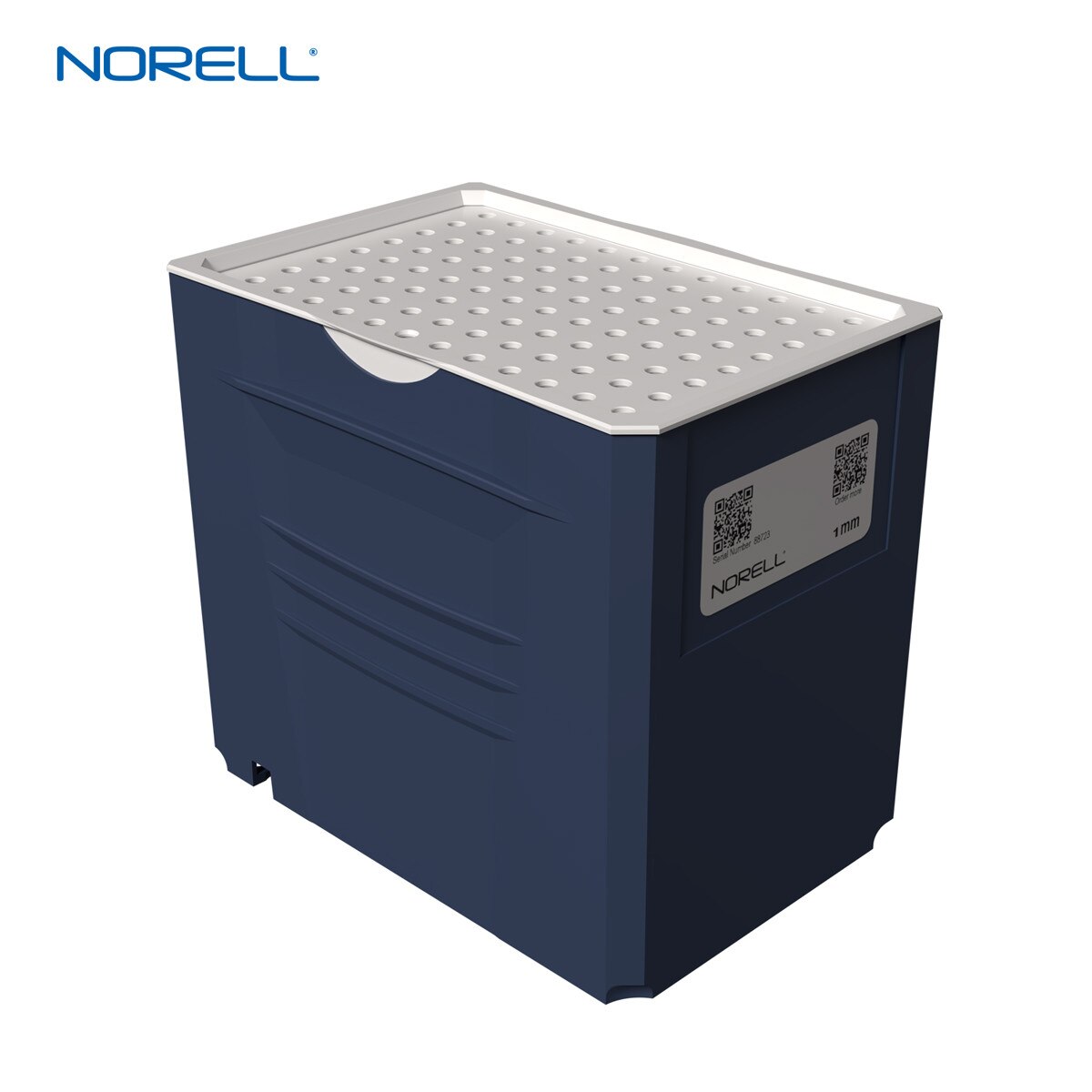

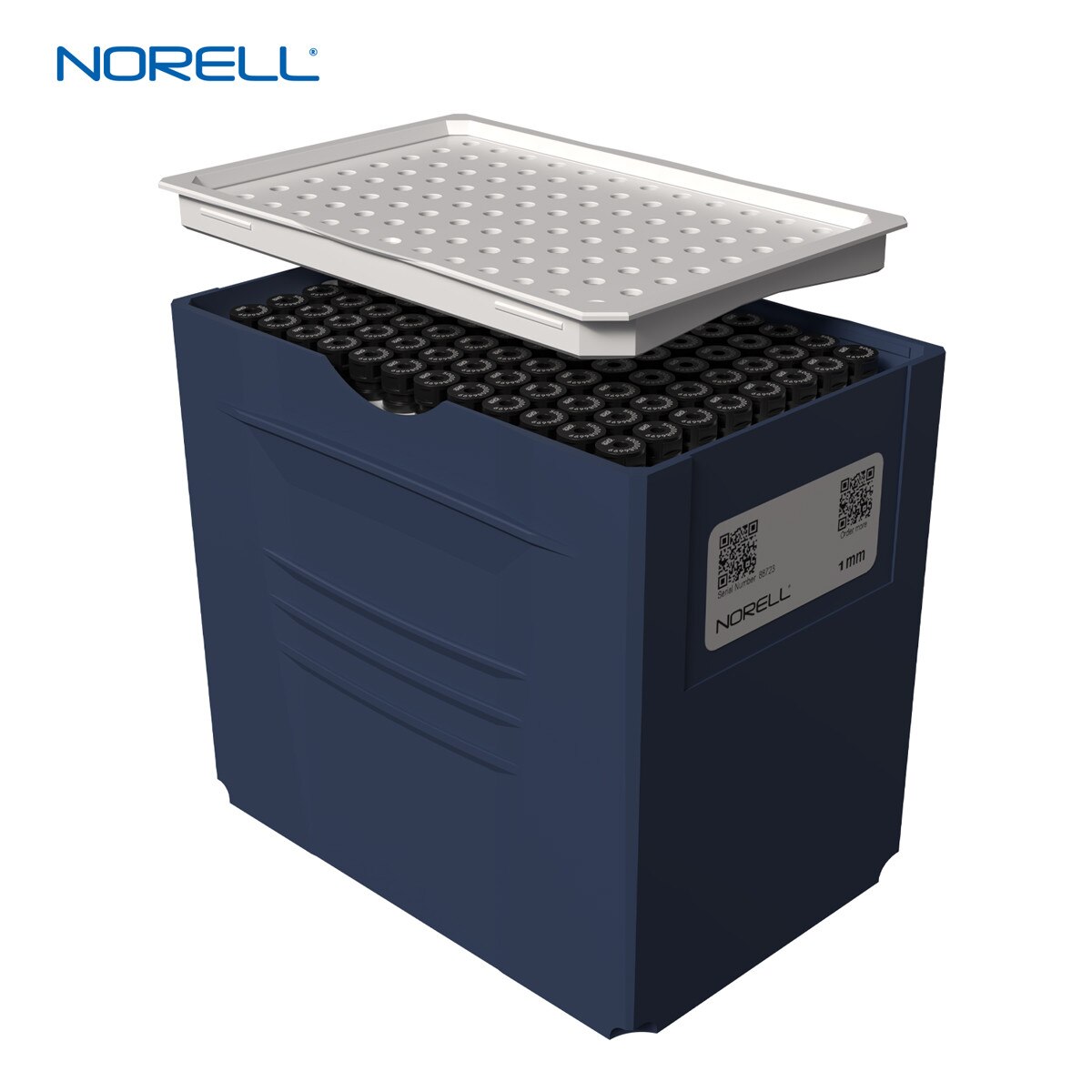

Sample Vault™NMR Sample Tube Rack from Norell®

Manufactured from laboratory engineered high strength & high modulus biopolymer.

  • 96 position NMR sample tube rack for use in SampleJet systems
  • 1 mm NMR sample tubes
  • Includes coded, open port Sample Vault™ Caps
  • Up to 900 MHz
  • 103.5 mm
  • Cap Color: Black
  • O.D.: 1 mm / I.D.: ~0.24 mm
  • Wall Size: 0.38 mm
  • Concentricity (mm): 40 μm
  • Camber ± (mm): 60 μm

    Sample Vault™ Series NMR tubes with Sample Vault™ caps (U.S. Patent No. 8,054,080), are engineered for a new generation of high-throughput lab automation systems, including the Bruker SampleJet.

    Our patented design incorporates a white band positioned on the NMR tube that aligns with the base of the cap, indicating a properly locked position. Together, our Sample Vault™ caps and Sample Vault™ tubes form an integrated closure system for fail-safe delivery of your sample into the magnet.

    Download Sample Vault Series™ Document Here
