Sample Vault Series™ Heavy Wall • 5mm O.D. • 103.5mm Length • 950 MHz • Open Port • 5 Pack

SKU SVOP-SUPER-5-HW-103.5-5PK
$111.15

Available to Order

Back

Details

Sample Vault Series™ Heavy Wall NMR Tubes, 5 Pack

  • 5 mm
  • Heavy Wall
  • Up to 950 MHz

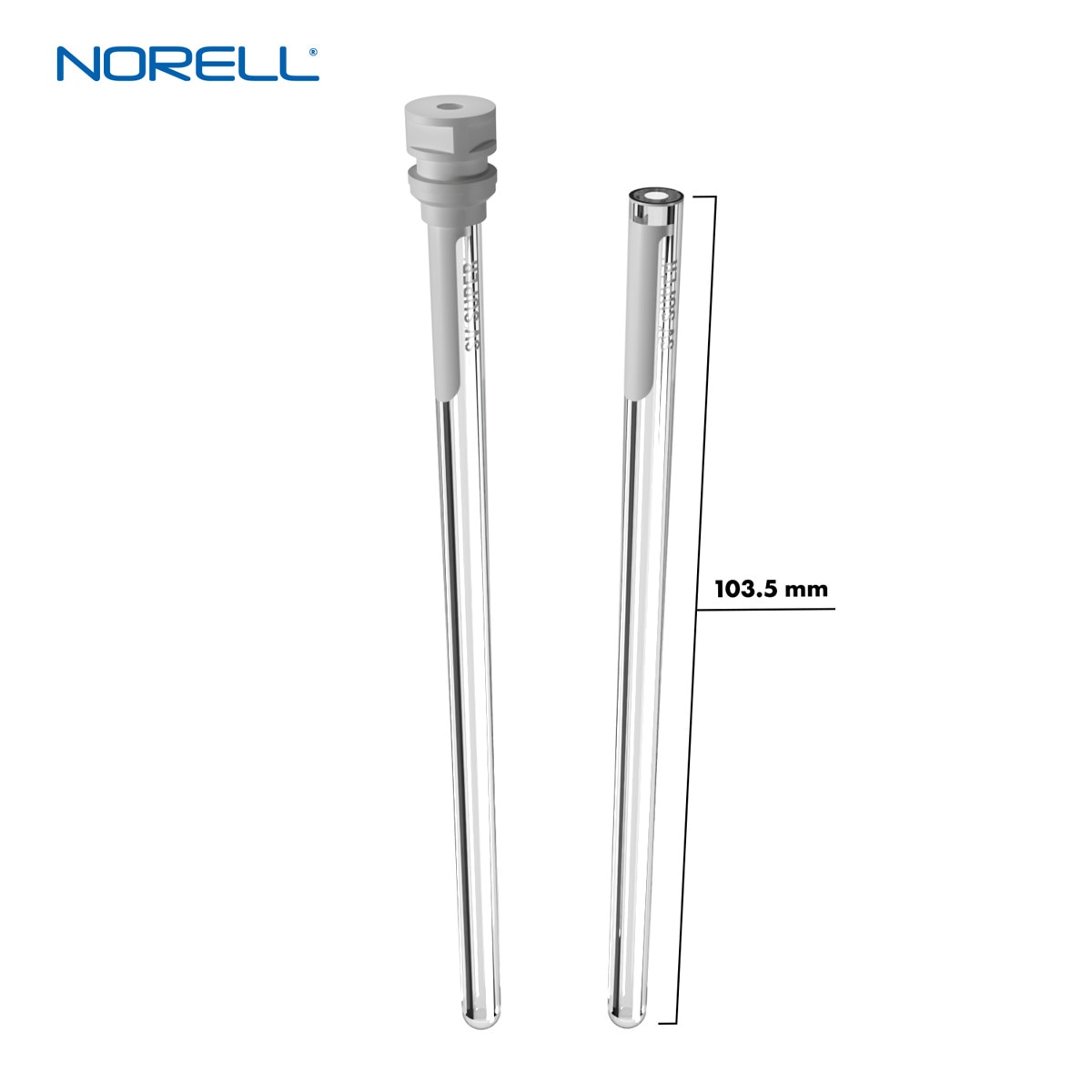

  • 103.5 mm
  • Includes uncoded, open port Sample Vault™ Caps
  • O.D.: 4.97 ± 0.013 mm / I.D.: 2.20 ± 0.025 mm
  • Wall Size: 1.4 mm
  • Concentricity: 20 μm
  • Camber: 30 μm

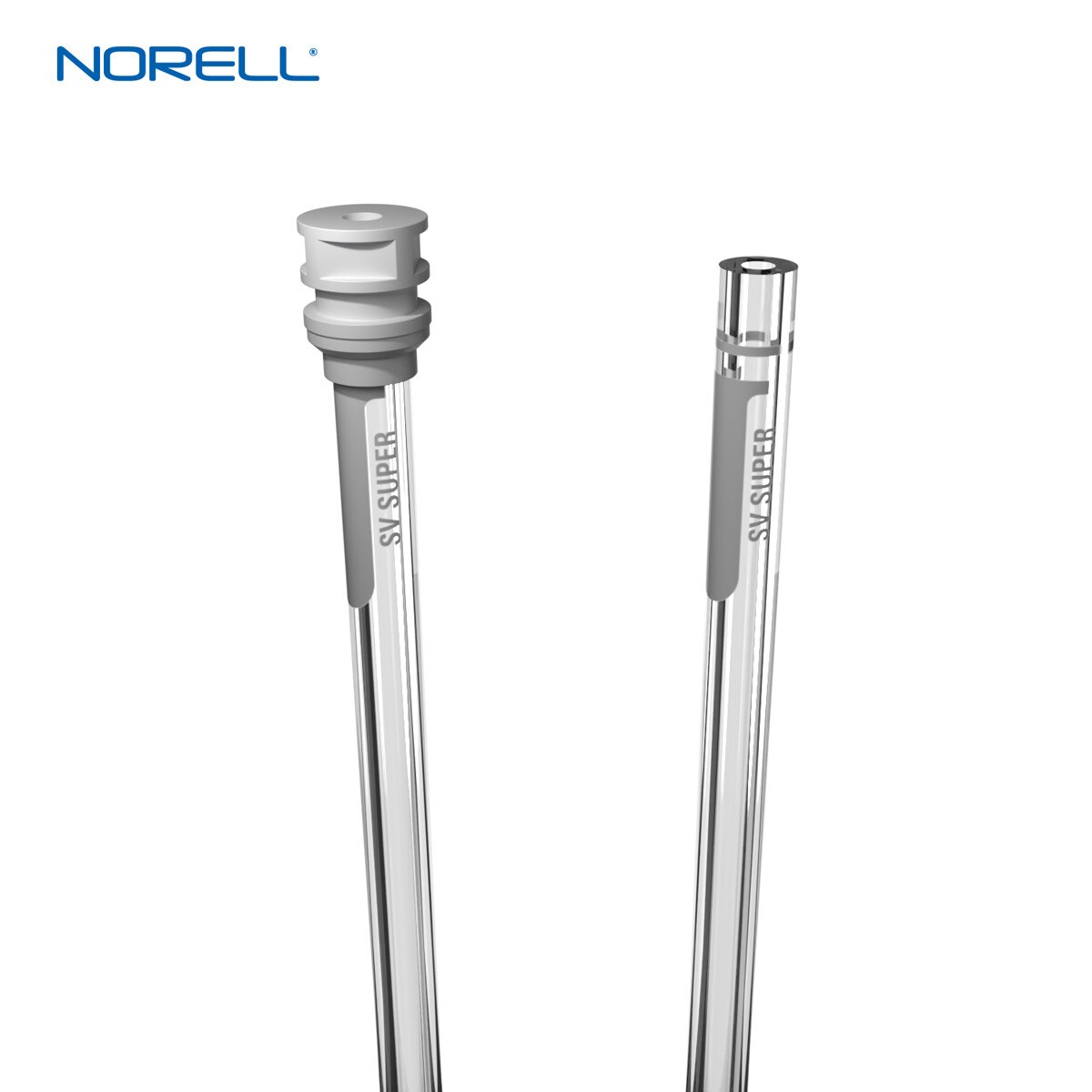

    Sample Vault™ Series NMR tubes with Sample Vault™ caps (U.S. Patent No. 8,054,080), are engineered for a new generation of high-throughput lab automation systems, including the Bruker SampleJet.

    Our patented design incorporates a white band positioned on the NMR tube that aligns with the base of the cap, indicating a properly locked position. Together, our Sample Vault™ caps and Sample Vault™ tubes form an integrated closure system for fail-safe delivery of your sample into the magnet.

    Download Sample Vault Series™ Document Here
