Sample Vault Series™ NMR Sample Tube Rack • 5mm O.D. • 103.5mm Length • 900 MHz • Coded • Open Port • 96 Pack • Open Wall

SKU SVOP-5-103.5-96PK-O
$367.33

Available to Order

Back

Details

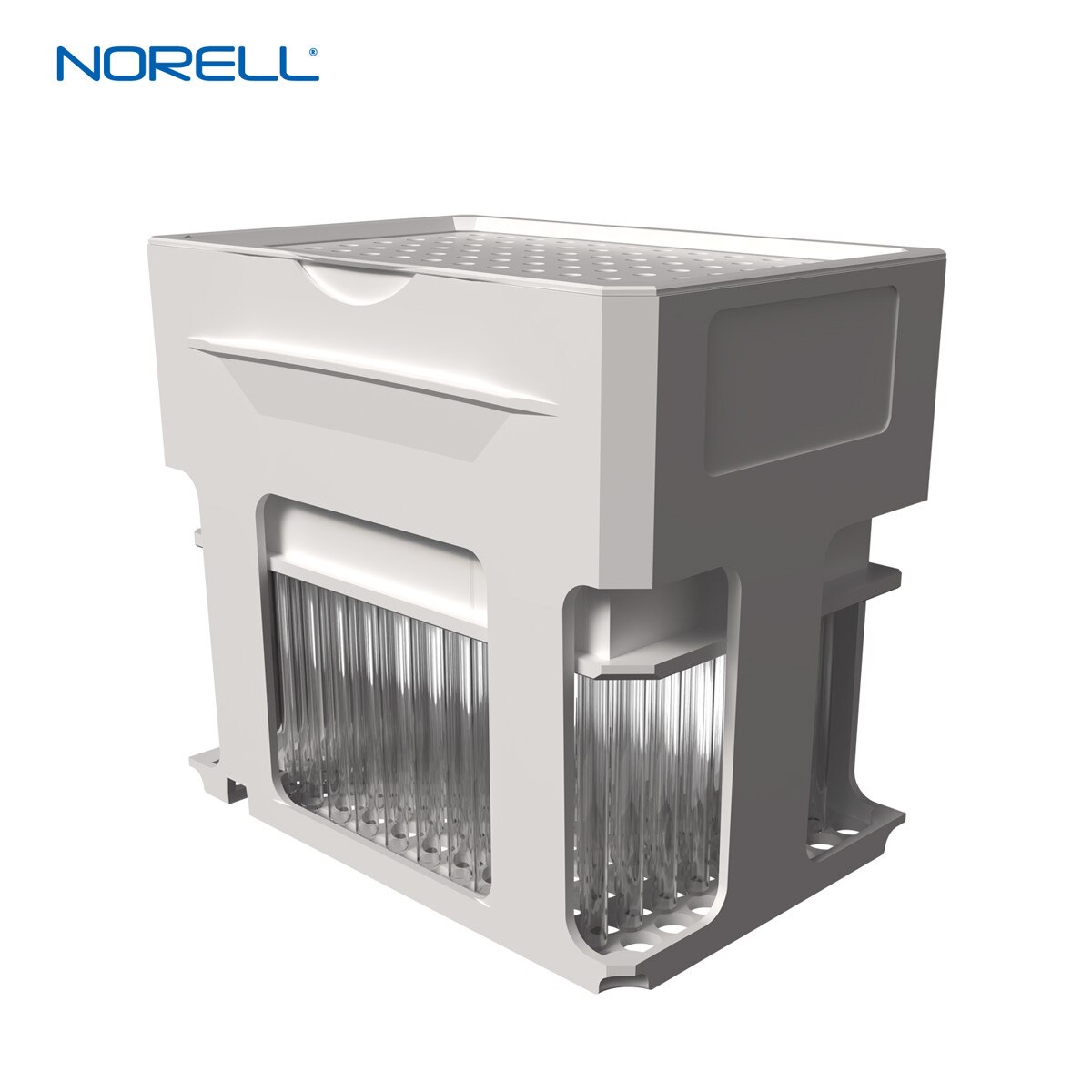

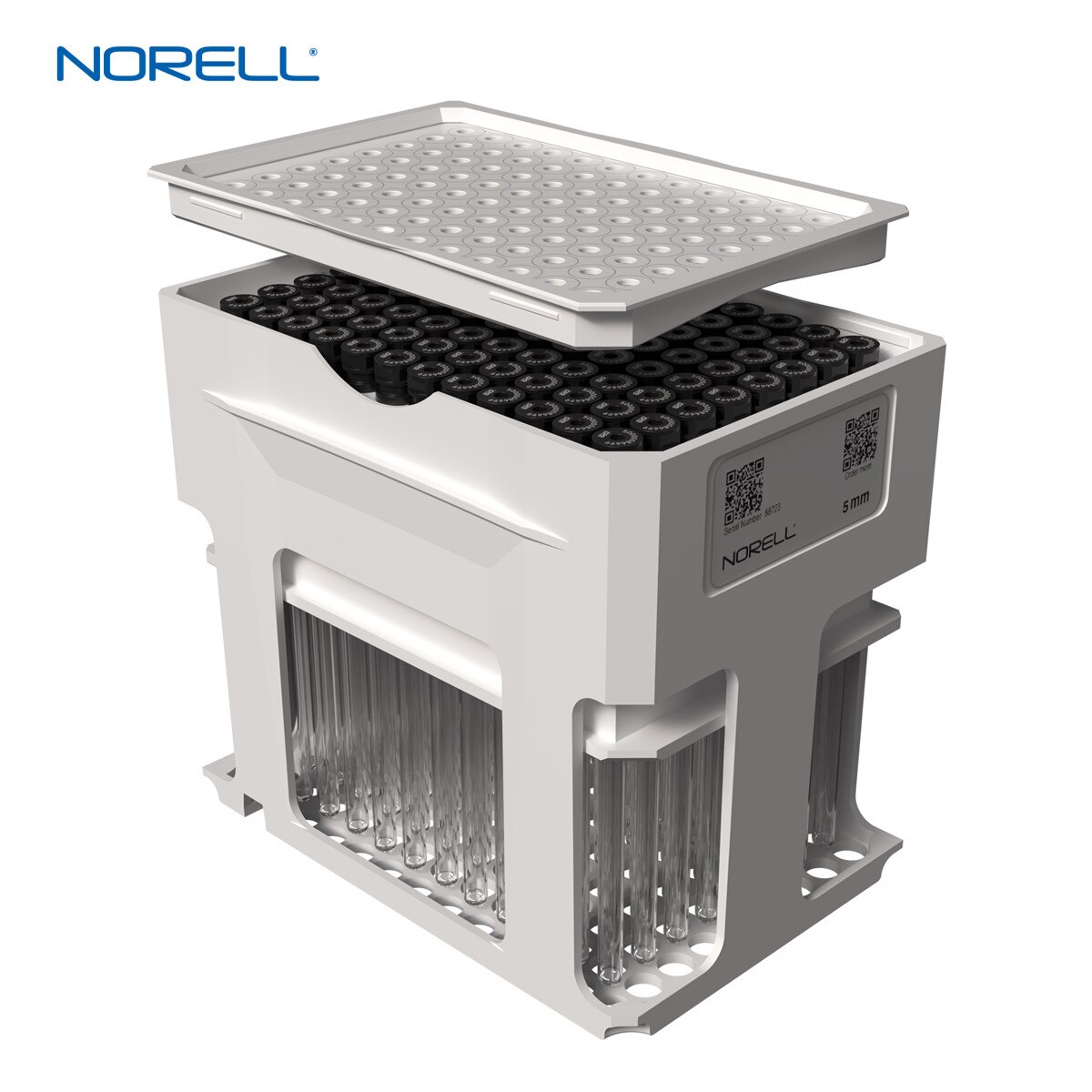

Open Wall Sample Vault™NMR Sample Tube Rack from Norell®

Engineered for Reliable Performance with Bruker SampleJet Systems


Our redesigned Sample Vault™ NMR Sample Tube Rack delivers dependable performance for high-throughput automation. Featuring an open-wall design, this rack has been laboratory tested to ensure seamless compatibility with Bruker SampleJet spectrometers.


Manufactured from high-strength, high-modulus biopolymer, the rack provides the durability and dimensional stability your automated workflows demand.

  • 96 position NMR sample tube rack for use in SampleJet systems
  • 5mm NMR sample tubes
  • Includes coded, open port Sample Vault™ Caps
  • Up to 900 MHz
  • 103.5 mm
  • Cap Color: Black
  • O.D.: 5 mm / I.D.: ~4.24 mm
  • Wall Size: 0.38 mm
  • Concentricity: 40 μm
  • Camber: 60 μm
  • Open-wall design provides a clear, 360° view of samples
  • Laboratory tested for reliable Bruker SampleJet compatibility

    Sample Vault™ Series NMR tubes with Sample Vault™ caps (U.S. Patent No. 8,054,080), are engineered for a new generation of high-throughput lab automation systems, including the Bruker SampleJet.

    Our patented design incorporates a white band positioned on the NMR tube that aligns with the base of the cap, indicating a properly locked position. Together, our Sample Vault™ caps and Sample Vault™ tubes form an integrated closure system for fail-safe delivery of your sample into the magnet.

    Download Sample Vault Series™ Document Here
