Select Series™ 5mm, Ultra-Precision NMR Tubes, 5 Pack

• 5mm
• 600MHz
• 7 Inch (178mm)
• Ships with Economy Cap. NorLoc™ Caps Sold Separately.

Our “Select Series™” NMR tubes are manufactured out of ASTM Type 1 Class A glass, commonly referred to as Pyrex® 7740 (Corning), Duran® (Schott Glass), or Kimax® KG-33 (Kimble) glass.

Key properties that make this glass type desirable for NMR are its high degree of thermal shock resistance and low expansion coefficient. This allows for a greater margin of safety from breakage when used in variable temperature applications and freeze/thaw cycling, or under any other application where large temperature variations are required in the experiment.

Each NMR tube is checked for concentricity and camber specifications utilizing the latest computer technology.

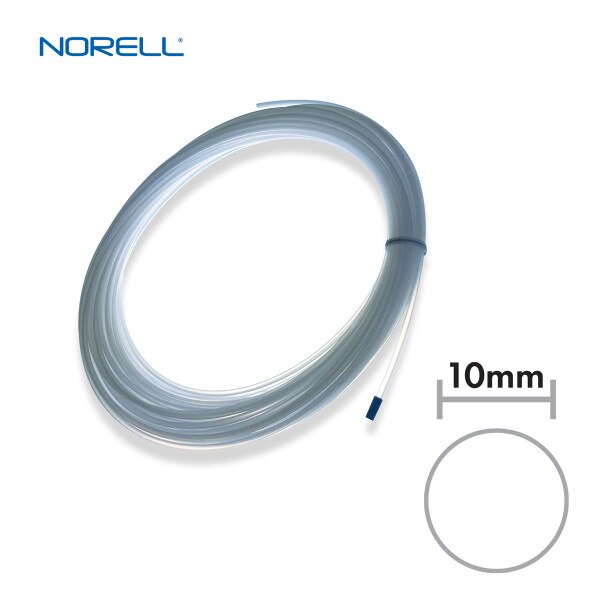

Thin-Wall Transparent Fluoropolymer FEP Tubing

• 10.63mm O.D. x 10mm I.D.
• 12" Length (305mm)
• Packed in Lots of 4

Our thin-wall transparent fluoropolymer FEP tubing is manufactured from special virgin grade DuPont thermoplastic FEP fluoropolymer. Unlike PTFE tubing, this material can be heat sealed. This property offers extremely large possibilities for packaging and/or storage of samples (corrosives, liquids, solids, etc.). Our fluoropolymer tubing can also be used where snug and tight fit over glass or metal tubing is required.

Thin-Wall Transparent Fluoropolymer FEP Tubing

• 8.54mm O.D. x 8mm I.D.
• 12" Length (305mm)
• Packed in Lots of 4

Our thin-wall transparent fluoropolymer FEP tubing is manufactured from special virgin grade DuPont thermoplastic FEP fluoropolymer. Unlike PTFE tubing, this material can be heat sealed. This property offers extremely large possibilities for packaging and/or storage of samples (corrosives, liquids, solids, etc.). Our fluoropolymer tubing can also be used where snug and tight fit over glass or metal tubing is required.

Standard Series™ NMR Tubes, 25 Pack

• 5mm
• 300MHz
• 7 Inch (178mm)
• For Routine NMR

Our “Standard Series™” NMR tubes are manufactured out of ASTM Type 1 Class B glass, commonly referred to as N-51A. Applications that are suited for using this type of glass are routine NMR where samples are run under room temperatures with no thermal gradients. It is therefore not recommended to fuse this glass with standard vacuum manifolds and the like, since these are generally made out of Type 1 Class A glass. Each NMR tube is checked for concentricity and camber specifications utilizing the latest computer technology.

Tube Washing Unit

• For 5mm NMR Sample Tubes

Our NMR Sample Tube Washing Unit is made of borosilicate glass. It is a “must” for anyone confronted with the tedious task of cleaning NMR sample tubes. Wash, rinse and dry your NMR tubes - all in one single step!

4mm, Standard, Natural Quartz EPR Sample Tubes, 5 Pack
Norell EPR tubes produce lower background signals and have better resistance to breakage than competitor brands. Our proprietary technical treatment reduces background noise along with the benefit of protecting against tube breakage.

Additionally, we have designed a new fluoropolymer closure system around our fire-polished tube ends that prevents sample loss during temperature gradients. Available in both standard and ultra precision. Supplied with tapered  fluoropolymer caps.

• 4mm
• 250mm Length
• O.D. 4mm
• I.D. 3mm

Standard Series™ High-Throughput NMR Tubes, 100 Pack

• 5mm
• High-Throughput
• 7 Inch (178mm)
• For Routine NMR

Our “Standard Series™” NMR tubes are manufactured out of ASTM Type 1 Class B glass, commonly referred to as N-51A. Applications that are suited for using this type of glass are routine NMR where samples are run under room temperatures with no thermal gradients. It is therefore not recommended to fuse this glass with standard vacuum manifolds and the like, since these are generally made out of Type 1 Class A glass. Each NMR tube is checked for concentricity and camber specifications utilizing the latest computer technology.

Optimizer Inserts™ for 5mm Spinner Turbines

• For Adapting 3mm tube to 5mm Bruker Spinner Turbine

Precision adapter, made from a proprietary formulation of acetal homopolymer resin, holds 1.5mm, 1.7mm, 2.0mm, 2.5mm, 3mm, 4mm or 4.25mm NMR tubes in 5mm spinner turbine. Available for Agilent/Varian, Bruker & JEOL spectrometers. Does not include spinner turbine.

Standard Series™ High-Throughput NMR Tubes, 100 Pack

• 5mm
• High-Throughput
• 8 Inch (203mm)
• For Routine NMR

Our “Standard Series™” NMR tubes are manufactured out of ASTM Type 1 Class B glass, commonly referred to as N-51A. Applications that are suited for using this type of glass are routine NMR where samples are run under room temperatures with no thermal gradients. It is therefore not recommended to fuse this glass with standard vacuum manifolds and the like, since these are generally made out of Type 1 Class A glass. Each NMR tube is checked for concentricity and camber specifications utilizing the latest computer technology.
