Sample Vault^™NMR Sample Tube Rack from Norell^®

Manufactured from laboratory engineered high strength & high modulus biopolymer.

• 96 position NMR sample tube rack for use in SampleJet systems
• 3mm NMR sample tubes
• Includes coded open port superior Sample Vault™ NMR sample tube caps
• Up to 900MHz

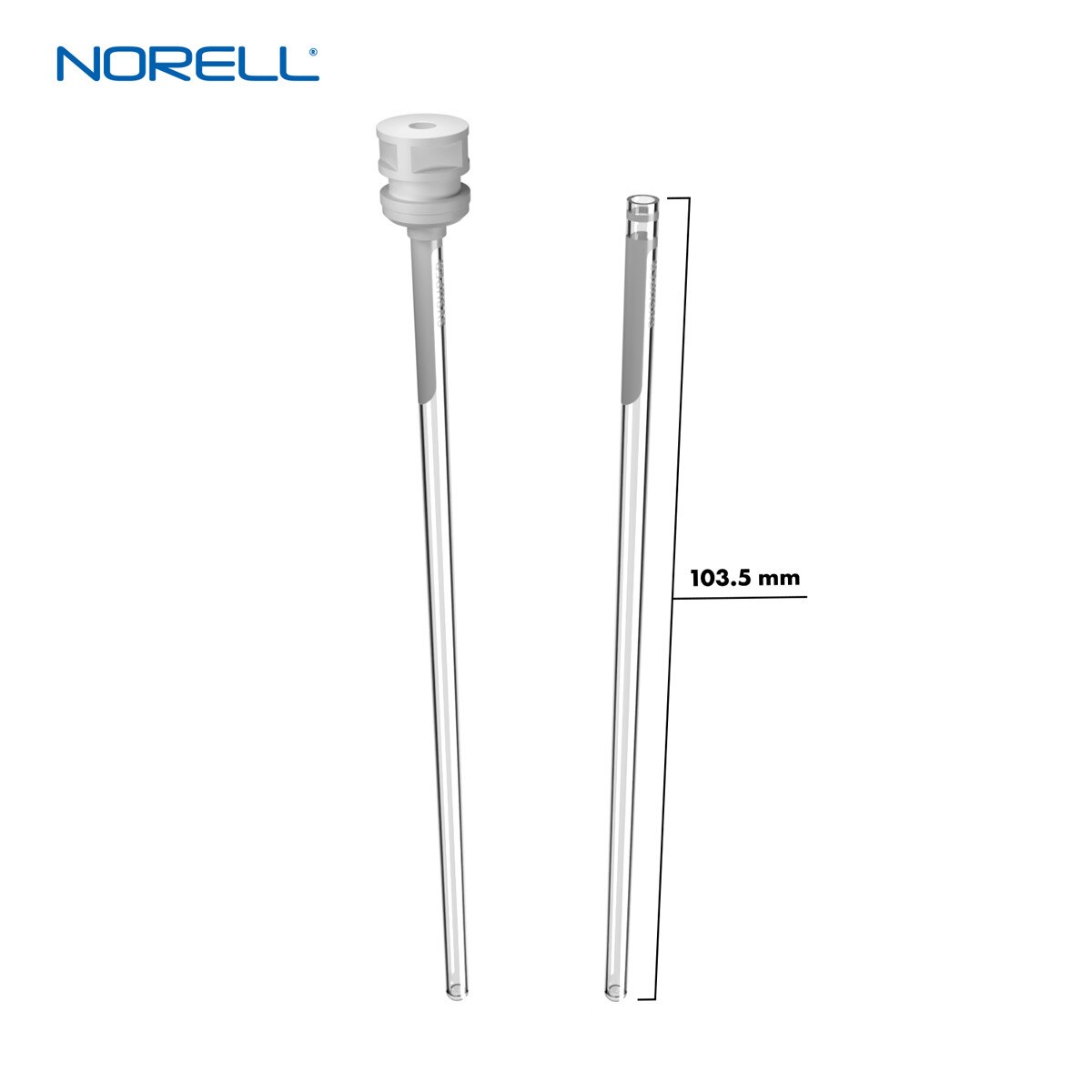

• 103.5mm

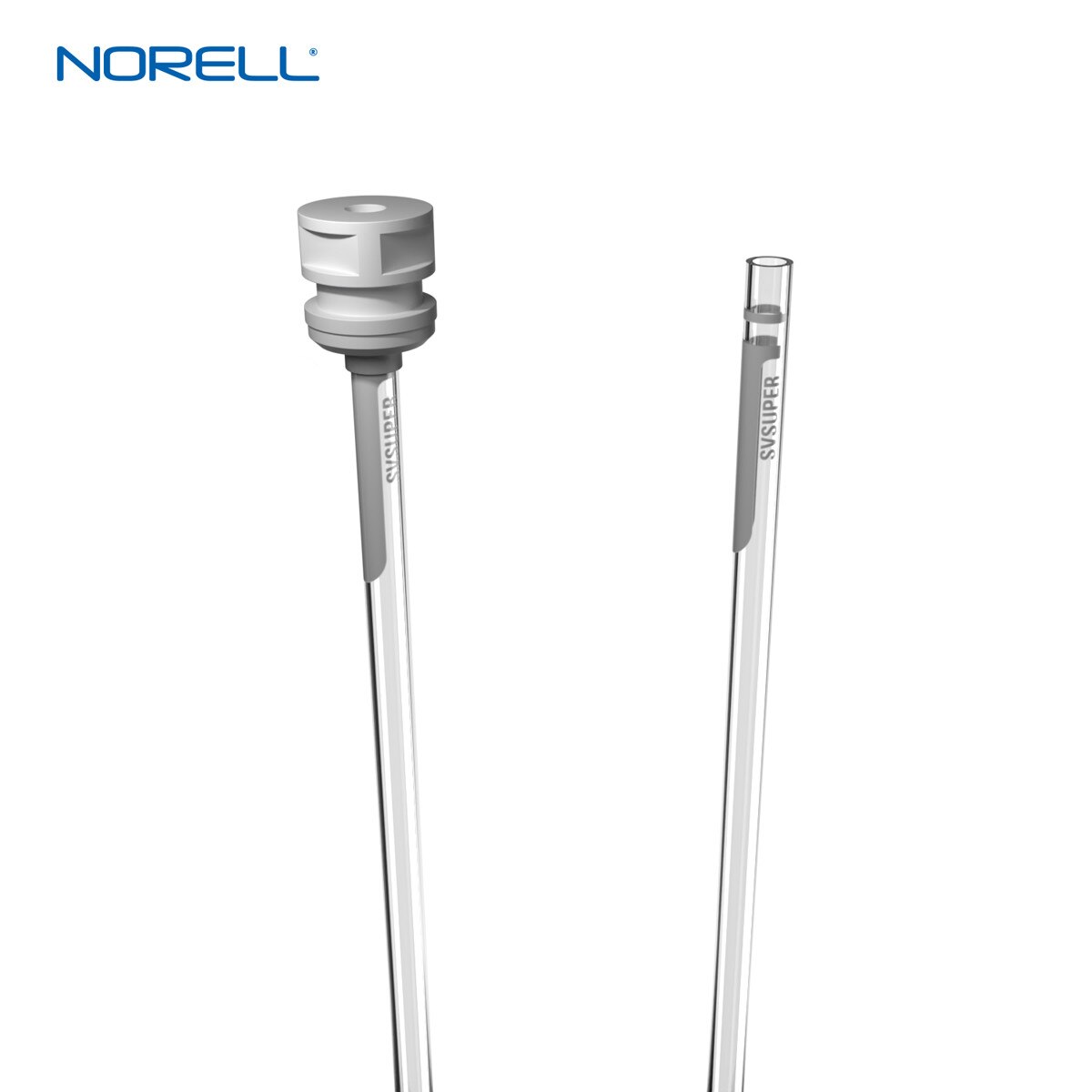

Sample Vault™ Series NMR tubes with Sample Vault™ caps (U.S. Patent No. 8,054,080), are engineered for a new generation of high-throughput lab automation systems, including the Bruker SampleJet.

Our patented design incorporates a white band positioned on the NMR tube that aligns with the base of the cap, indicating a properly locked position. Together, our Sample Vault™ caps and Sample Vault™ tubes form an integrated closure system for fail-safe delivery of your sample into the magnet.

Sample Vault Series™ NMR Tubes, 96 Pack

• 3mm
• Up to 700MHz
• 103.5mm
• Packed in Lots of 96
• Ships with Closed Port Sample Vault Caps

Sample Vault™ Series NMR tubes with Sample Vault™ caps (U.S. Patent No. 8,054,080), are engineered for a new generation of high-throughput lab automation systems, including the Bruker SampleJet.

Our patented design incorporates a white band positioned on the NMR tube that aligns with the base of the cap, indicating a properly locked position. Together, our Sample Vault™ caps and Sample Vault™ tubes form an integrated closure system for fail-safe delivery of your sample into the magnet.

Select Series™ 5mm, Ultra-Precision NMR Tubes, 5 Pack

• 5mm
• 400MHz
• 7 Inch (178mm)
• Ships with Economy Cap. NorLoc™ Caps Sold Separately.

Our “Select Series™” NMR tubes are manufactured out of ASTM Type 1 Class A glass, commonly referred to as Pyrex® 7740 (Corning), Duran® (Schott Glass), or Kimax® KG-33 (Kimble) glass.

Key properties that make this glass type desirable for NMR are its high degree of thermal shock resistance and low expansion coefficient. This allows for a greater margin of safety from breakage when used in variable temperature applications and freeze/thaw cycling, or under any other application where large temperature variations are required in the experiment.

Each NMR tube is checked for concentricity and camber specifications utilizing the latest computer technology.

Economy NMR Tube Caps, 100 Pack
Our economy NMR tube caps are now available in 12 different colors for better solvent labeling capabilities.

• 5mm
• Yellow
• Ethylene-Vinyl Acetate

Heavy Wall NMR Sample Tubes, 5 Pack

• 5mm
• Up to 500MHz
• 7" (178mm)

Heavy wall (1.4 mm) NMR tubes offer the ultimate protection from breakage, either through rapid changes in temperature or pressure, or from mishandling. Recommended for use with hazardous or radioactive samples, where sample containment is critical. Available either constricted and/or amberized.

Standard Series™ Ultra-Precision NMR Tubes, 5 Pack

• 5mm
• 500MHz
• 7 Inch (178mm)
• For Routine NMR

Our “Standard Series™” NMR tubes are manufactured out of ASTM Type 1 Class B glass, commonly referred to as N-51A. Applications that are suited for using this type of glass are routine NMR where samples are run under room temperatures with no thermal gradients. It is therefore not recommended to fuse this glass with standard vacuum manifolds and the like, since these are generally made out of Type 1 Class A glass. Each NMR tube is checked for concentricity and camber specifications utilizing the latest computer technology.

Standard Series™ High-Throughput NMR Tubes, 50 Pack

• 5mm
• High-Throughput
• 7 Inch (178mm)
• For Routine NMR

Our “Standard Series™” NMR tubes are manufactured out of ASTM Type 1 Class B glass, commonly referred to as N-51A. Applications that are suited for using this type of glass are routine NMR where samples are run under room temperatures with no thermal gradients. It is therefore not recommended to fuse this glass with standard vacuum manifolds and the like, since these are generally made out of Type 1 Class A glass. Each NMR tube is checked for concentricity and camber specifications utilizing the latest computer technology.

Standard Series™ Ultra-Precision NMR Tubes, 5 Pack

• 5mm
• 600MHz
• 7 Inch (178mm)
• For Routine NMR

Our “Standard Series™” NMR tubes are manufactured out of ASTM Type 1 Class B glass, commonly referred to as N-51A. Applications that are suited for using this type of glass are routine NMR where samples are run under room temperatures with no thermal gradients. It is therefore not recommended to fuse this glass with standard vacuum manifolds and the like, since these are generally made out of Type 1 Class A glass. Each NMR tube is checked for concentricity and camber specifications utilizing the latest computer technology.

Economy NMR Tube Caps, 100 Pack
Our economy NMR tube caps are now available in 12 different colors for better solvent labeling capabilities.

• 5mm
• Purple
• Ethylene-Vinyl Acetate
