Amberized Standard Series NMR Sample Tubes, 1 Pack

• 5mm
• 7" (178mm)
• 500MHz
• For Routine NMR

Available with ULTRA-THIN wall NMR Tubes.

Pictured with optional NorLoc™ Cap. Amberized NMR tubes ship with economy caps.

Select Series™ 5mm, Ultra-Precision NMR Tubes, 5 Pack

• 5mm
• 500MHz
• 7 Inch (178mm)
• Ships with Economy Cap. NorLoc™ Caps Sold Separately.

Our “Select Series™” NMR tubes are manufactured out of ASTM Type 1 Class A glass, commonly referred to as Pyrex® 7740 (Corning), Duran® (Schott Glass), or Kimax® KG-33 (Kimble) glass.

Key properties that make this glass type desirable for NMR are its high degree of thermal shock resistance and low expansion coefficient. This allows for a greater margin of safety from breakage when used in variable temperature applications and freeze/thaw cycling, or under any other application where large temperature variations are required in the experiment.

Each NMR tube is checked for concentricity and camber specifications utilizing the latest computer technology.

5mm Valved NMR Tubes for Vacuum & Reduced Pressure, 1 Pack

• 5mm
• 500MHz
• 8" (203mm)

Handle your NMR sample without flame-sealing your tubes. Fluoropolymer covered o-ring eliminates material incompatibilities. Completely greaseless fluoropolymer assembly, which is easy to use and to disassemble for cleaning. Includes female joint for quick attachment to your vacuum rack.

A vacuum level of 10-7 kPa (10-6 torr) can be attained with this valve. While this valve can also withstand an internal positive pressure to 500 kPa (5 bar, 72 psi), the VT Valved NMR Tube series is intended principally for vacuum work.

Standard Series™ Ultra-Precision NMR Tubes, 5 Pack

• 5mm
• 500MHz
• 7 Inch (178mm)
• For Routine NMR

Our “Standard Series™” NMR tubes are manufactured out of ASTM Type 1 Class B glass, commonly referred to as N-51A. Applications that are suited for using this type of glass are routine NMR where samples are run under room temperatures with no thermal gradients. It is therefore not recommended to fuse this glass with standard vacuum manifolds and the like, since these are generally made out of Type 1 Class A glass. Each NMR tube is checked for concentricity and camber specifications utilizing the latest computer technology.

Standard Series™ High-Throughput NMR Tubes, 50 Pack

• 5mm
• High-Throughput
• 7 Inch (178mm)
• For Routine NMR

Our “Standard Series™” NMR tubes are manufactured out of ASTM Type 1 Class B glass, commonly referred to as N-51A. Applications that are suited for using this type of glass are routine NMR where samples are run under room temperatures with no thermal gradients. It is therefore not recommended to fuse this glass with standard vacuum manifolds and the like, since these are generally made out of Type 1 Class A glass. Each NMR tube is checked for concentricity and camber specifications utilizing the latest computer technology.

Long Tip Pasteur Pipette

• Designed for 5mm NMR Tubes
• 100 Per Box
• 8" (203mm)
• Bulb Sold Separately

Secure Series™ NMR Tubes 5 Pack

• 5mm
• 500MHz
• 7 Inch (178mm)
• Includes “Norloc™ with Security Band” Caps
• A patented proprietary surface treatment with a unique textured surface ensures precise and positive retention in Bruker, Agilent/Varian, and Jeol spinner turbines.

The Secure 33 Series™ NMR tubes are made from ASTM Type I Class A borosilicate glass ("low expansion" borosilicate glass such as Corning Pyrex® 7740 or equivalent) and match the properties of the Select Series™ NMR tubes from Norell®.

Secure Series™ NMR tubes feature several patented design elements that add a superior level of sample containment and isolation, safeguarding the integrity of precious or critical NMR samples and assuring secure retention of the NMR tube in the spinner turbine.

Secure Series™ NMR Tubes ship with our patented NorLoc Caps™ featuring a Security Band™ that engages and locks into the NorLoc II Security Cap™, securely joining the cap to the NMR tube.

Standard Series™ High-Precision NMR Tubes, 5 Pack

• 5mm
• 400MHz
• 7 Inch (178mm)
• For Routine NMR

Our “Standard Series™” NMR tubes are manufactured out of ASTM Type 1 Class B glass, commonly referred to as N-51A. Applications that are suited for using this type of glass are routine NMR where samples are run under room temperatures with no thermal gradients. It is therefore not recommended to fuse this glass with standard vacuum manifolds and the like, since these are generally made out of Type 1 Class A glass. Each NMR tube is checked for concentricity and camber specifications utilizing the latest computer technology.

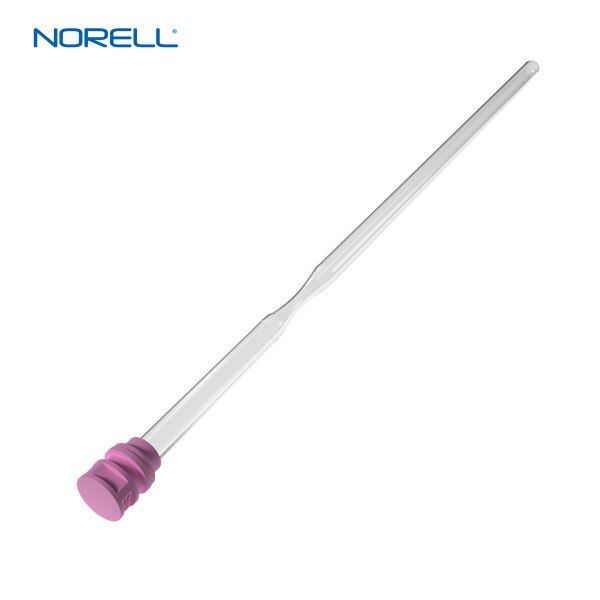

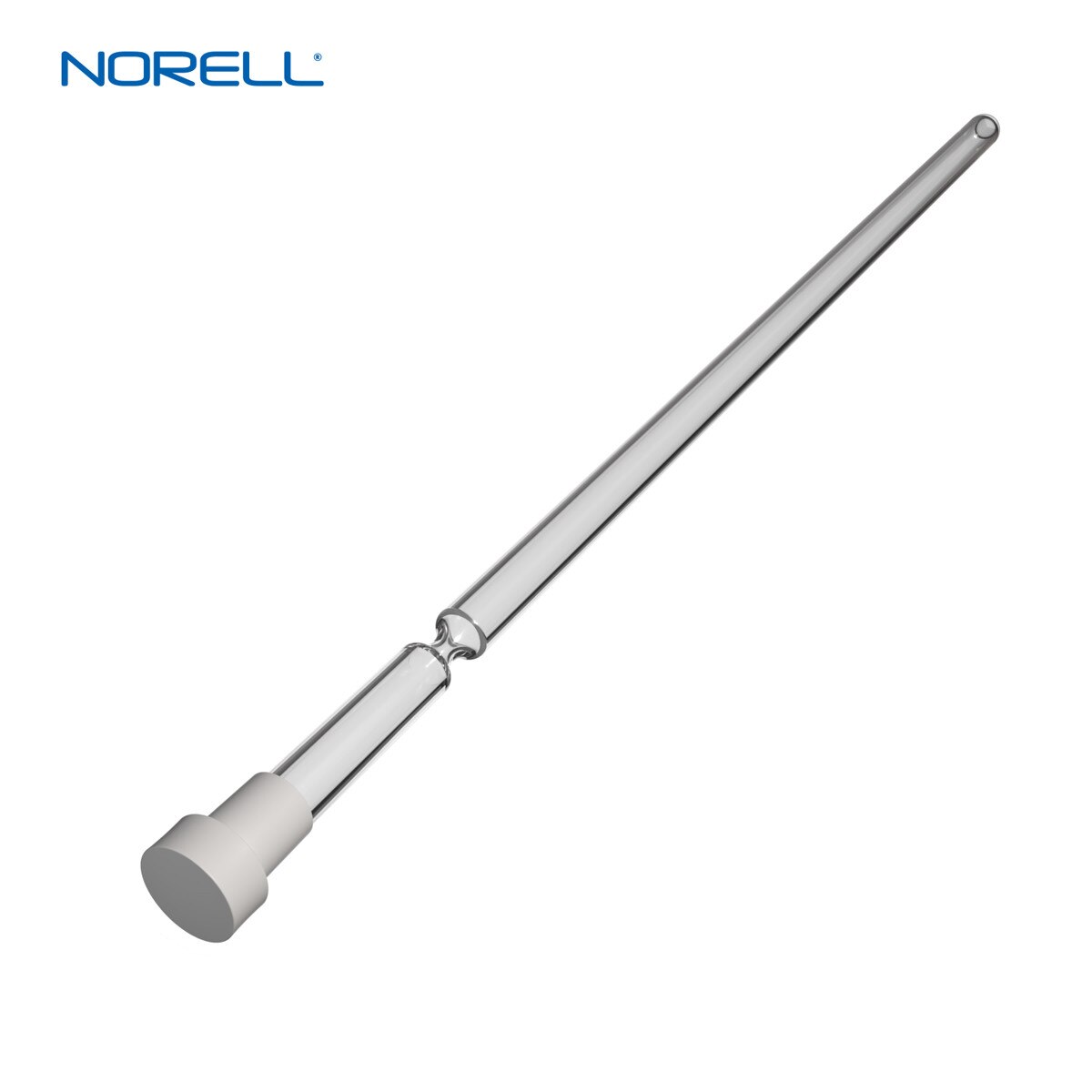

Constricted Select Series NMR Sample Tubes, 1 Pack

• 5mm
• 8" (203mm)
• 500MHz
• I.D. at Constriction: 1.5mm - 2.0mm
• For High Resolution NMR

Available with ULTRA-THIN wall NMR Tubes.

Pictured with optional NorLoc™ Cap. Constricted NMR tubes ship with economy caps.

Standard Series™ NMR Tubes, 25 Pack

• 5mm
• 300MHz
• 7 Inch (178mm)
• For Routine NMR

Our “Standard Series™” NMR tubes are manufactured out of ASTM Type 1 Class B glass, commonly referred to as N-51A. Applications that are suited for using this type of glass are routine NMR where samples are run under room temperatures with no thermal gradients. It is therefore not recommended to fuse this glass with standard vacuum manifolds and the like, since these are generally made out of Type 1 Class A glass. Each NMR tube is checked for concentricity and camber specifications utilizing the latest computer technology.
